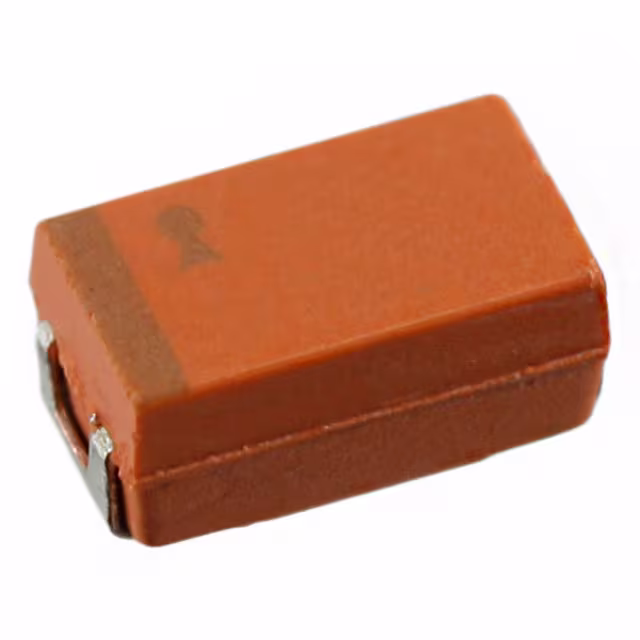

TAJC105K050PNJ

Manufacturer :

KYOCERA AVX

Product Category :

Tantalum Capacitors

Number of Terminations :

2

Min Operating Temperature :

-55°C

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Leakage Current :

500nA

Factory Lead Time :

21 Weeks

RoHS Status :

RoHS Compliant

Width :

3.2mm

JESD-609 Code :

e3

Weight :

149.997327mg

Case Code (Metric) :

6032

Voltage - Rated :

50V

Termination :

SMD/SMT

Max Operating Temperature :

125°C

Packing Method :

TR, 13 INCH

Length :

6mm

Tolerance :

10%

Capacitor Type :

TANTALUM CAPACITOR

Tan Delta :

0.04

Size Code :

2312

Terminal Shape :

J BEND

HTS Code :

8532.21.00.50

Dissipation Factor :

4 %

Pbfree Code :

yes

Mounting Feature :

Surface Mount

Case Code (Imperial) :

2412

Height :

2.8mm

Polarity :

POLARIZED

Packaging :

Tape and Reel (TR)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Dielectric Material :

TANTALUM (DRY/SOLID)

ECCN Code :

EAR99

Surface Mount :

yes

Reference Standard :

CECC30801-005

ESR (Equivalent Series Resistance) :

5.5Ohm

Capacitance :

1μF
