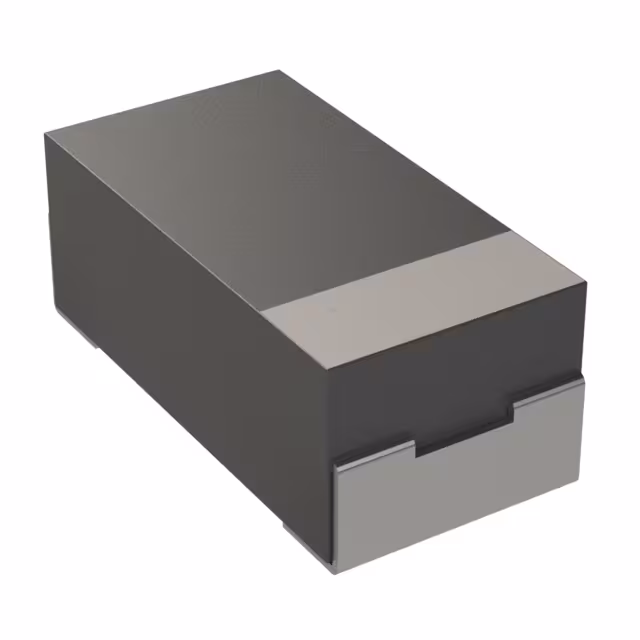

TAZH107M010CSSZ0000

Manufacturer :

KYOCERA AVX

Product Category :

Tantalum Capacitors

Terminal Shape :

J BEND

HTS Code :

8532.21.00.50

JESD-609 Code :

e0

Terminal Finish :

Tin/Lead (Sn/Pb) - fused

Factory Lead Time :

8 Weeks

Height :

2.79mm

Tan Delta :

0.1

Length :

7.24mm

Capacitance :

100μF

Leakage Current :

0.01mA

Dielectric Material :

Tantalum

Operating Temperature (Min) :

-55°C

ECCN Code :

EAR99

Additional Feature :

ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

RoHS Status :

Non-RoHS Compliant

Negative Tolerance :

20%

Width :

3.81mm

Size Code :

2915

Surface Mount :

yes

Operating Temperature (Max) :

125°C

Capacitor Type :

TANTALUM CAPACITOR

Packaging :

Tape and Reel (TR)

Mounting Feature :

Surface Mount

Ripple Current :

160mA

ESR :

900 mΩ

Positive Tolerance :

20%

Packing Method :

TR, 13 INCH

Rated (DC) Voltage (URdc) :

10V

Number of Terminations :

2

Reach Compliance Code :

not_compliant

Polarity :

POLARIZED

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Pbfree Code :

No
