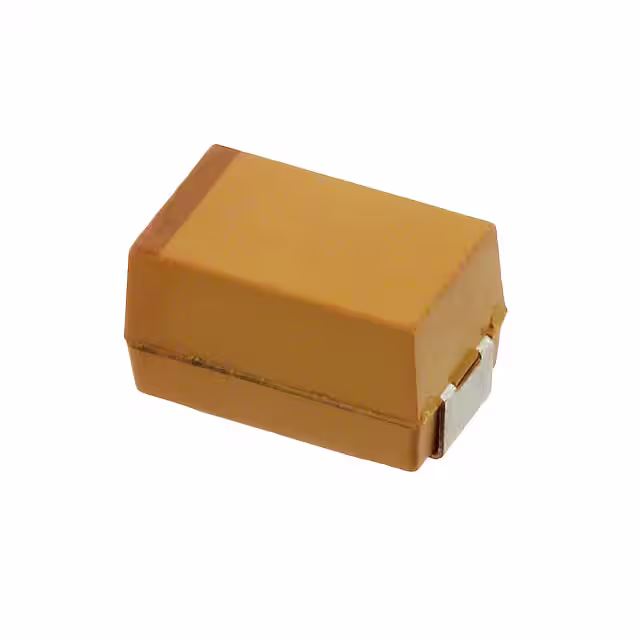

TCJC107M006R0070E

Manufacturer :

KYOCERA AVX

Product Category :

Tantalum - Polymer Capacitors

Subcategory :

Capacitors

Brand :

KYOCERA AVX

Minimum Operating Temperature :

- 55 C

Width :

3.2 mm

Termination Style :

SMD/SMT

Product Status :

Active

Operating Temperature :

-55°C ~ 105°C

Qualification :

-

Tradename :

J-CAP

Voltage - Rated :

6.3 V

Product :

Tantalum Organic Polymer Low ESR

Mounting Type :

Surface Mount

Product Type :

Tantalum Capacitors

Product Category :

Tantalum Capacitors - Polymer

Package :

Digi-Reel?

Manufacturer Size Code :

C

ESR (Equivalent Series Resistance) :

70mOhm @ 100kHz

Capacitance Tolerance :

± 20%

RoHS :

Details

Packaging :

MouseReel

Maximum Operating Temperature :

+ 105 C

Size / Dimension :

0.236" L x 0.126" W (6.00mm x 3.20mm)

Tolerance :

±20%

Manufacturer :

KYOCERA AVX

Height - Seated (Max) :

0.110" (2.80mm)

Series :

TCJ

Type :

Molded

Product Length :

6mm

Product Height :

2.6mm

Product Width :

3.2mm

Lead Spacing :

-

Ripple Current :

1.6A

Package / Case :

2312 (6032 Metric)

ESR :

0.07Ohm

Ratings :

-

Features :

GENERAL PURPOSE

Height :

2.6 mm

Length :

6 mm

Lifetime @ Temp. :

2000 Hrs @ 105°C

Capacitance :

100 µF

Leakage Current :

60 uA
