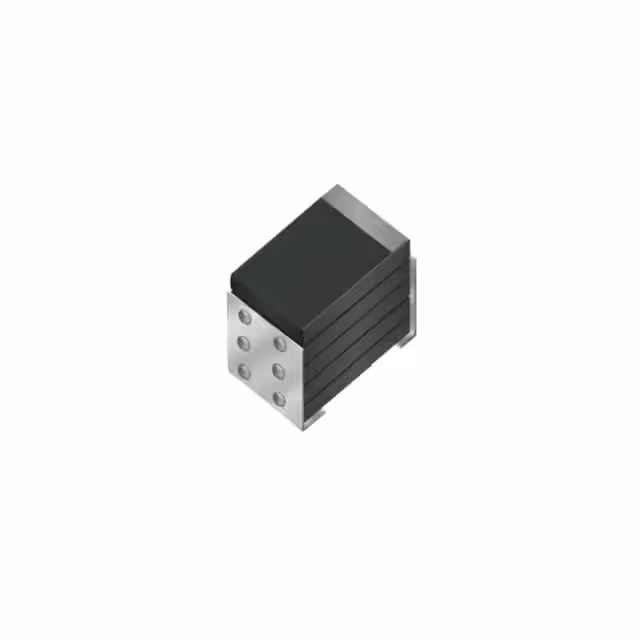

TCQB107M002R0070E

Manufacturer :

KYOCERA AVX

Product Category :

Tantalum - Polymer Capacitors

Product Length :

3.5 mm

Manufacturer Size Code :

B

Termination Style :

SMD/SMT

Product Width :

3.5 x 2.8 x 1.9 mm

Product Height :

1.9mm

Qualification :

AEC-Q200

Lifetime @ Temp. :

1000 Hrs @ 125°C

Product Category :

Tantalum Capacitors - Polymer

Voltage - Rated :

2.5 V

Minimum Operating Temperature :

- 55 C

Mounting Type :

Surface Mount

Product Status :

Active

Leakage Current :

25 uA

Width :

2.8 mm

Ripple Current :

1336 mA

Lead Spacing :

-

Packaging :

MouseReel

Operating Temperature :

-55°C ~ 125°C

Capacitance Tolerance :

20%

Maximum Operating Temperature :

+ 125 C

Capacitance :

100 µF

ESR :

70 mOhm

Package / Case :

1411 (3528 Metric)

Features :

Automotive

Product :

Tantalum Organic Polymer Standard Grade

RoHS :

Details

Package :

Digi-Reel?

ESR (Equivalent Series Resistance) :

70mOhm @ 100kHz

Height - Seated (Max) :

0.083" (2.10mm)

Length :

3.5 mm

Type :

Molded

Ratings :

AEC-Q200

Product Type :

Tantalum Capacitors

Series :

TCQ

Size / Dimension :

0.138" L x 0.110" W (3.50mm x 2.80mm)

Subcategory :

Capacitors

Tolerance :

±20%

Manufacturer :

KYOCERA AVX

Brand :

KYOCERA AVX

Height :

1.9 mm
