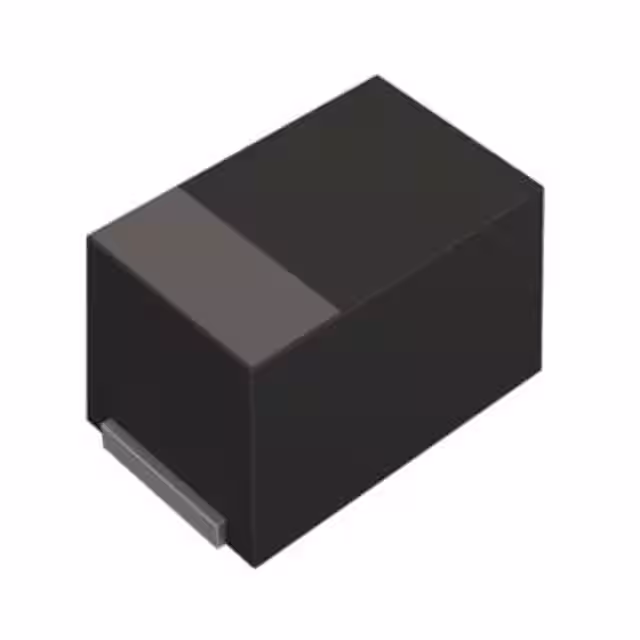

TCTP1A336M8R

Manufacturer :

KYOCERA AVX

Product Category :

Tantalum Capacitors

Dielectric Material :

TANTALUM (DRY/SOLID)

Packaging :

Tape and Reel

RoHS Status :

Non-RoHS Compliant

Number of Terminations :

2

Negative Tolerance :

20%

Positive Tolerance :

20%

Temperature Range @ Derated Voltage :

85 TO 125

High Shock and Vibration :

No

Tan Delta :

0.3

Pbfree Code :

yes

Leakage Current :

0.0165mA

Size Code :

0805

Failure Rate :

Not Required

Number of Terminals :

2

Construction :

SMT Chip

Terminal Shape :

ONE SURFACE

Seated Plane Height :

Not Required(mm)

Rad Hardened :

No

Terminal Finish :

Tin/Copper (Sn/Cu)

Rated (DC) Voltage (URdc) :

10V

JESD-609 Code :

e2

Voltage :

10VDC

Packing Method :

TR, 7 INCH

Capacitance :

33μF

Operating Temperature (Min) :

-55°C

Case Style :

Molded

Insulation :

Not Required

Lead Spacing (nom) :

Not Required(mm)

Mounting Style :

Surface Mount

Product Diameter (mm) :

Not Required(mm)

Operating Temp Range :

-55C to 125C

HTS Code :

8532.21.00.50

Surface Mount :

yes

Seal :

Not Required

Length :

2mm

Length W/Weld :

Not Required(mm)

Product Height (mm) :

1.2(mm)

Package / Case :

2012-12

Wire Form :

Not Required

Case Code :

P

DF :

30%

DCL :

16.5(uA)

Operating Temperature (Max) :

125°C

Tolerance (+ or -) :

20%

Height :

1.2mm

Width :

1.25mm

Lead Diameter (nom) :

Not Required(mm)

Polarity :

POLARIZED

Mounting Feature :

Surface Mount

Product Length (mm) :

2(mm)

Termination Style :

INWARD L

Product Depth (mm) :

1.25(mm)

ECCN Code :

EAR99

Capacitor Type :

TANTALUM CAPACITOR
