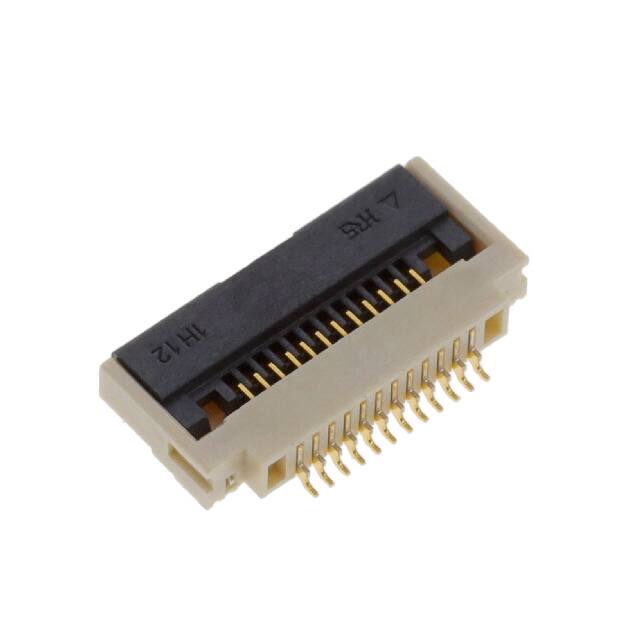

TF31-12S-0.5SH(800)
Or copy the link below:
- Mfr.Part #
- TF31-12S-0.5SH(800)
- Manufacturer
- Hirose
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC 12POS 0.50MM SMD
- Stock
- 4,253
- In Stock ：
- 4,253
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Hirose
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Voltage - Rated :
- 50V
- Contact Finish Thickness :
- 1.18μin 0.030μm
- Contact Material :
- Phosphor Bronze
- Number Of PCB Rows :
- 1
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C~85°C
- Housing Color :
- Beige
- Mounting Type :
- Surface Mount, Right Angle
- Total Number of Contacts :
- 12
- Number of Rows :
- 1
- Height Above Board :
- 0.069 1.75mm
- Actuator Material :
- Liquid Crystal Polymer (LCP)
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Number of Positions :
- 12
- Contact Finish :
- Gold
- Factory Lead Time :
- 12 Weeks
- Contact Pattern :
- RECTANGULAR
- ECCN Code :
- EAR99
- Contact Resistance :
- 50mOhm
- HTS Code :
- 8536.69.40.51
- Reference Standard :
- UL
- Connector Type :
- FFC/FPC CONNECTOR
- Connector/Contact Type :
- Contacts, Bottom
- Actuator Color :
- Black
- Cable End Type :
- Tabbed
- Reliability :
- COMMERCIAL
- Flat Flex Type :
- FFC, FPC
- FFC, FCB Thickness :
- 0.30mm
- Current Rating (Amps) :
- 0.5A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Zero Insertion Force (ZIF)
- Pitch :
- 0.020 0.50mm
- Insulation Resistance :
- 500000000Ohm
- Mounting Option 1 :
- LOCKING
- Termination :
- Solder
- Mating Cycles :
- 20
- RoHS Status :
- ROHS3 Compliant
- Series :
- TF31
- Locking Feature :
- Flip Lock
- Datasheets
- TF31-12S-0.5SH(800)
TF31 Series FFC, FPC Contacts, Bottom 0.020 0.50mm Solder 12 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.5A
TF31-12S-0.5SH(800) Overview
Packaging is FFC/FPC CONNECTOR.This device has a Surface Mount, Right Angle mounting type.Specifically, it is one of the products in the TF31 Series.Several benefits come from the Zero Insertion Force (ZIF) feature.Devices operate at -40°C~85°C operating temperatures.
TF31-12S-0.5SH(800) Features
TF31 series
TF31-12S-0.5SH(800) Applications
There are a lot of Hirose Electric Co Ltd
TF31-12S-0.5SH(800) FFC, FPC (Flat Flexible) Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
