TIP30-BP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Transistors - Bipolar (BJT) - Single

Transistor Polarity :

PNP

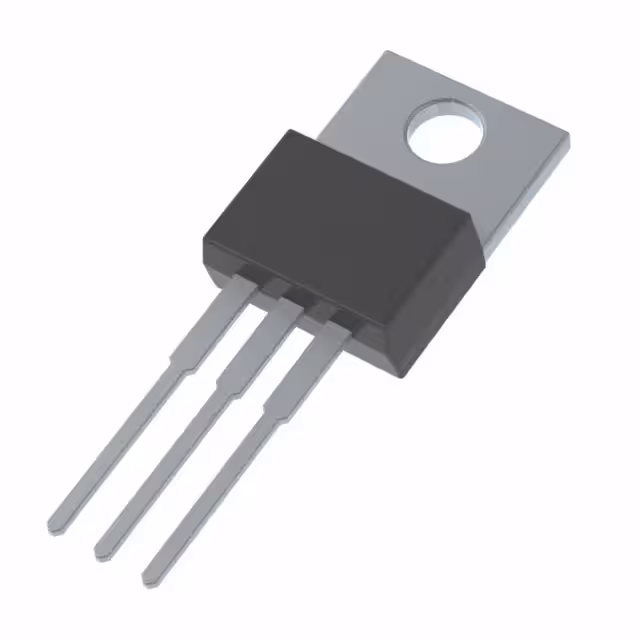

Package / Case :

TO-220-3

Collector Emitter Voltage (VCEO) :

40 V

Package :

Tube

Gain Bandwidth Product :

3 MHz

Transistor Type :

PNP

Max Power Dissipation :

30 W

Maximum Operating Temperature :

+ 150 C

Power - Max :

30 W

Max Operating Temperature :

150 °C

Packaging :

Bulk

Vce Saturation (Max) @ Ib, Ic :

700mV @ 125mA, 1A

Max Collector Current :

1 A

Collector Base Voltage (VCBO) :

40 V

Mounting Style :

Through Hole

Emitter Base Voltage (VEBO) :

5 V

Product Status :

Obsolete

Series :

TIP30

Frequency - Transition :

3MHz

Min Operating Temperature :

-55 °C

Current - Collector Cutoff (Max) :

300μA

Polarity :

PNP

Configuration :

Single

Supplier Device Package :

TO-220AB

Operating Temperature :

-55°C ~ 150°C (TJ)

Mounting Type :

Through Hole

DC Current Gain (hFE) (Min) @ Ic, Vce :

40 @ 200mA, 4V

Current - Collector (Ic) (Max) :

1 A

Minimum Operating Temperature :

- 55 C

Voltage - Collector Emitter Breakdown (Max) :

40 V

Base Product Number :

TIP30

RoHS :

Details

hFE Min :

40
