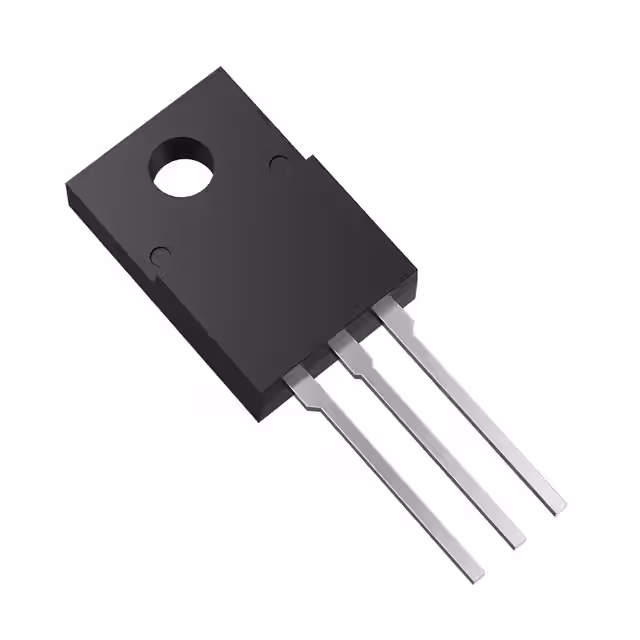

TK155A65Z,S4X

Manufacturer :

Toshiba Electronic Devices and Storage Corporation

Product Category :

Transistors - FETs, MOSFETs - Single

Product Category :

MOSFET

Product Status :

Active

Packaging :

Tube

Package / Case :

TO-220-3 Full Pack

Base Product Number :

TK155A65

Subcategory :

MOSFETs

Transistor Type :

1 N-Channel

Drain to Source Voltage (Vdss) :

650 V

Supplier Device Package :

TO-220SIS

Minimum Operating Temperature :

- 55 C

Mounting Type :

Through Hole

Power Dissipation (Max) :

40W (Tc)

Number of Channels :

1 Channel

RoHS :

Details

Manufacturer :

Toshiba

Rds On (Max) @ Id, Vgs :

155mOhm @ 9A, 10V

Input Capacitance (Ciss) (Max) @ Vds :

1635 pF @ 300 V

Transistor Polarity :

N-Channel

Configuration :

Single

Mounting Style :

Through Hole

Maximum Operating Temperature :

+ 150 C

Drive Voltage (Max Rds On, Min Rds On) :

10V

Vgs(th) (Max) @ Id :

4V @ 730μA

FET Feature :

-

Package :

Tube

Operating Temperature :

150°C

Product Type :

MOSFET

Series :

DTMOSVI

Current - Continuous Drain (Id) @ 25°C :

18A (Ta)

Gate Charge (Qg) (Max) @ Vgs :

29 nC @ 10 V

Vgs (Max) :

±30V

Rise Time :

23 ns

Channel Mode :

Enhancement

Brand :

Toshiba

FET Type :

N-Channel
