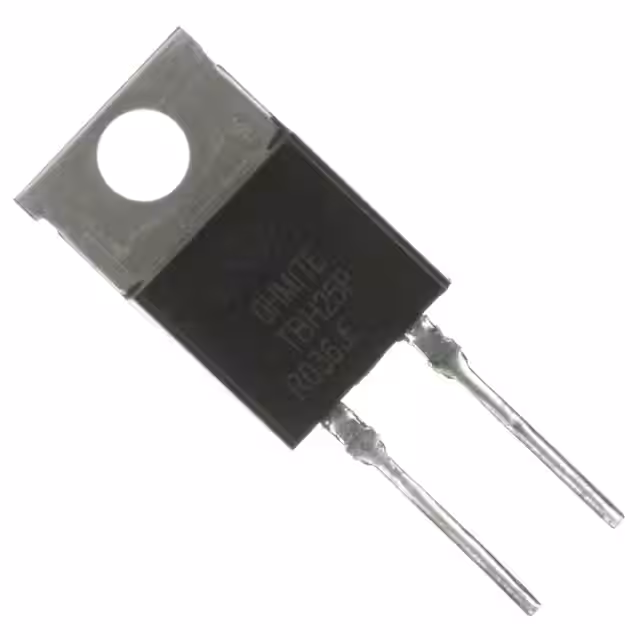

TK20P5K00JE

Manufacturer :

Ohmite

Product Category :

Through Hole Resistors

Power Rating :

20W

Case Style :

Molded

Type :

Thick Film

Product Height (mm) :

17.8(mm)

Product Length (mm) :

10(mm)

Tolerance :

5%

Max Operating Temperature :

150°C

Resistor Type :

FIXED RESISTOR

Min Operating Temperature :

25°C

Military Standard :

Not Required

Terminal Finish :

Tin (Sn)

Lead Diameter :

1 mm

Construction :

RECTANGULAR

Flame-Proof Support :

No

Product Diameter (mm) :

Not Required(mm)

Failure Rate :

Not Required

Additional Feature :

RATED POWER DISSIPATED USING HEATSINK

RoHS Status :

RoHS Compliant

Power Dissipation-Max :

20W

Lead Pitch :

5.1mm

Voltage - Rated DC :

150V

Temperature Range @ Derated Power :

25 to 150

JESD-609 Code :

e3

Terminal Shape :

Wire

Package Type :

TO-220

Packaging :

Bulk

Package / Case :

TO-220

Resistance :

5kOhm

ECCN Code :

EAR99

Width :

4.5974mm

Composition :

Thick Film

Length :

10.0076mm

Pbfree Code :

yes

Tolerance (+ or -) :

5%

Mount :

Through Hole

Power Rating(s) :

20(W)

Terminal Pitch :

5.1mm

Termination Style :

Radial

Number of Terminations :

2

Lead Free :

Lead Free

Lead Spacing (nom) :

5.1(mm)

Number of Pins :

2

Height :

17.8054mm

Termination :

Radial

Number of Terminals :

2

Product Depth (mm) :

4.6(mm)

Temperature Coefficient :

200 ppm/°C
