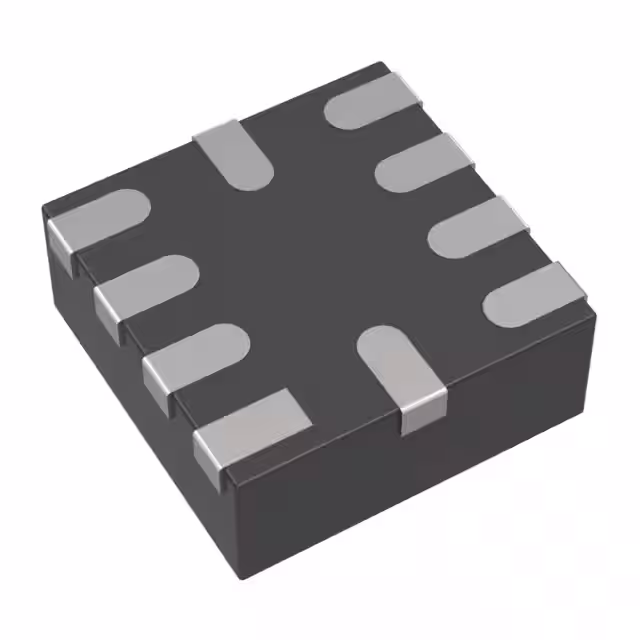

TMP461AIRUNR-S

Manufacturer :

Texas Instruments

Product Category :

Temperature Sensors - Analog and Digital Output

Number of Functions :

1

Analog IC - Other Type :

ANALOG CIRCUIT

Resolution :

11 b

Operating Temperature :

-40°C~125°C

Sensing Temperature - Remote :

-64°C~191°C

Packaging :

Tape and Reel (TR)

Accuracy - Highest (Lowest) :

±1°C (±1.25°C)

Height Seated (Max) :

0.8mm

Length :

2mm

JESD-30 Code :

S-PQCC-N10

Pbfree Code :

yes

Peak Reflow Temperature (Cel) :

260

Supply Voltage :

3.3V

Width :

2mm

Sensing Temperature - Local :

-40°C~125°C

Sensor Type :

Digital, Local/Remote

Package / Case :

10-WFQFN Exposed Pad

Base Part Number :

TMP461

Number of Terminations :

10

Mounting Type :

Surface Mount

Supply Voltage-Max (Vsup) :

3.6V

Output Type :

SMBus

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Feature :

One-Shot, Output Switch, Programmable Limit, Shutdown Mode, Standby Mode

Moisture Sensitivity Level (MSL) :

2 (1 Year)

JESD-609 Code :

e4

Terminal Form :

NO LEAD

Terminal Position :

QUAD

Factory Lead Time :

6 Weeks

Supply Voltage-Min (Vsup) :

1.7V

Voltage - Supply :

1.7V~3.6V

RoHS Status :

ROHS3 Compliant

Test Condition :

-10°C ~ 100°C (-40°C ~ 125°C)

Surface Mount :

yes
