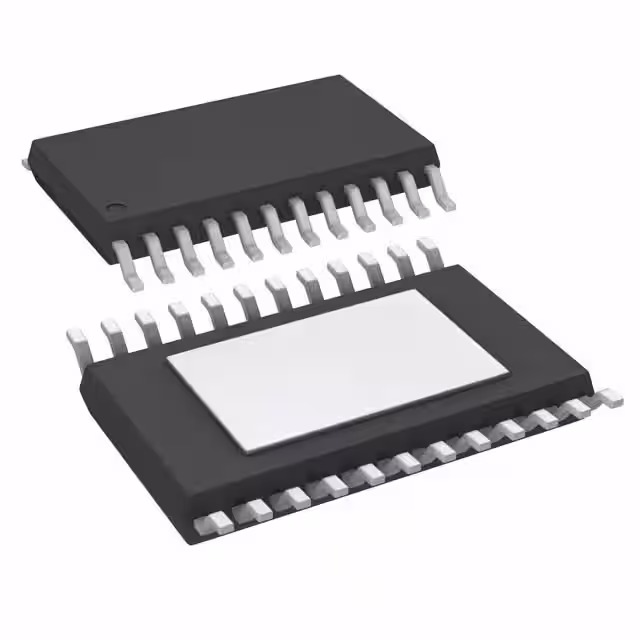

TPA2000D2PWPRG4

Manufacturer :

Texas Instruments

Product Category :

Audio Amplifiers

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

ECCN Code :

EAR99

Length :

7.8mm

Max Output Power :

2W

Min Dual Supply Voltage :

4.5V

Bandwidth :

20 kHz

Width :

4.4mm

Supply Type :

Single

Packaging :

Tape and Reel

Min Operating Temperature :

-40°C

Output Power :

2W

Consumer IC Type :

AUDIO AMPLIFIER

JESD-609 Code :

e4

Power - Output :

2W

Pin Count :

24

Max Supply Voltage :

5.5V

Dual Supply Voltage :

5V

RoHS Status :

RoHS Compliant

Power Supply Rejection Ratio (PSRR) :

77dB

Nominal Supply Current :

10mA

Weight :

98.08935mg

Max Operating Temperature :

85°C

Surface Mount :

yes

Number of Terminations :

24

Harmonic Distortion :

0.1%

Temperature Grade :

Industrial

Radiation Hardening :

No

HTS Code :

8542.33.00.01

Moisture Sensitivity Level (MSL) :

2 (1 Year)

Package / Case :

HTSSOP EP

Height Seated (Max) :

1.2mm

Terminal Form :

Gull wing

Terminal Position :

Dual

Power Dissipation :

2.7W

Min Supply Voltage :

4.5V

Number of Functions :

1

Lead Free :

Contains Lead

Power Supplies :

5V

Terminal Pitch :

0.65mm

Pbfree Code :

yes

Number of Pins :

24

Gain :

23.5 dB

Peak Reflow Temperature (Cel) :

260

Power Dissipation-Max :

2.7W

Operating Supply Voltage :

5V

Number of Channels :

2

Max Dual Supply Voltage :

5.5V
