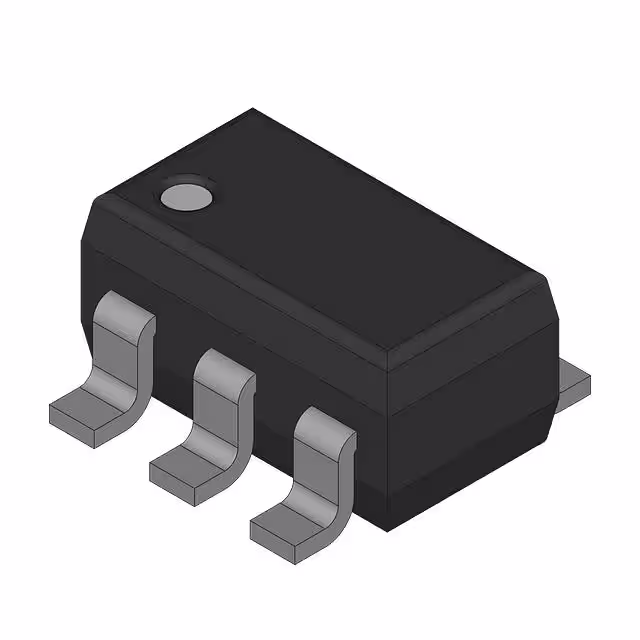

TPS73619DBVR

Manufacturer :

Texas Instruments

Product Category :

Voltage Regulators - Linear

Mount :

Surface Mount

Terminal Form :

Gull wing

JESD-30 Code :

R-PDSO-G5

Radiation Hardening :

No

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Polarity :

Positive

Peak Reflow Temperature (Cel) :

260

Min Input Voltage :

1.7V

Pbfree Code :

yes

Terminal Position :

Dual

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Output Current :

400mA

Length :

2.9mm

Pin Count :

5

Terminal Pitch :

0.95mm

Max Input Voltage :

5.5V

Number of Terminations :

5

RoHS Status :

RoHS Compliant

Number of Functions :

1

ECCN Code :

EAR99

Packaging :

Tape and Reel

Packing Method :

Tape and Reel

Output Type :

FIXED

Number of Outputs :

1

Voltage - Output :

1.9V

Accuracy :

0.5 %

Voltage Tolerance-Max :

1%

Input Voltage Absolute-Max :

6V

Dropout Voltage1-Nom :

0.075V

Max Operating Temperature :

125°C

Output Voltage 1 :

1.9V

Min Operating Temperature :

-40°C

JESD-609 Code :

e4
