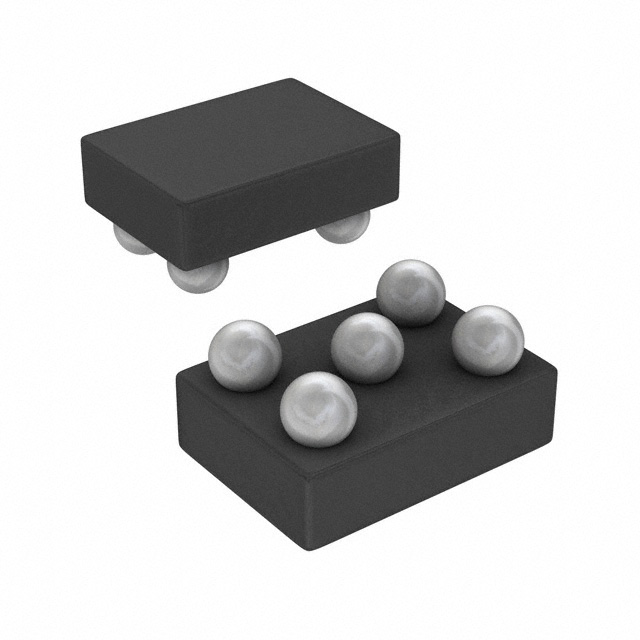

TPS7A1118PYKAR

Manufacturer :

Texas Instruments

Product Category :

Voltage Regulators - Linear

JESD-30 Code :

R-XBGA-B5

Terminal Pitch :

0.35mm

Factory Lead Time :

6 Weeks

PSRR :

64dB ~ 35dB (1kHz ~ 1.5MHz)

Reach Compliance Code :

Compliant

Terminal Form :

Ball

Number of Regulators :

1

Width :

0.74mm

Number of Functions :

1

Control Features :

Enable

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Voltage - Output (Min/Fixed) :

1.8V

Packaging :

Tape and Reel (TR)

Current - Supply (Max) :

11μA

Pbfree Code :

yes

Height Seated (Max) :

0.4mm

Mounting Type :

Surface Mount

Output Configuration :

Positive

Terminal Position :

BOTTOM

Output Type :

FIXED

Current - Quiescent (Iq) :

2.6μA

Package / Case :

5-XFBGA, DSBGA

Current - Output :

500mA

Voltage - Input (Max) :

3.3V

JESD-609 Code :

e1

Dropout Voltage1-Nom :

0.13V

Base Part Number :

TPS7A1118

Surface Mount :

yes

Protection Features :

Over Current, Over Temperature, UVLO

Operating Temperature :

-40°C~125°C TJ

RoHS Status :

RoHS Compliant

Number of Terminations :

5

Input Voltage (Min) :

2.3V

Number of Outputs :

1

Voltage Dropout (Max) :

0.07V @ 500mA

Output Voltage 1 :

1.8V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
