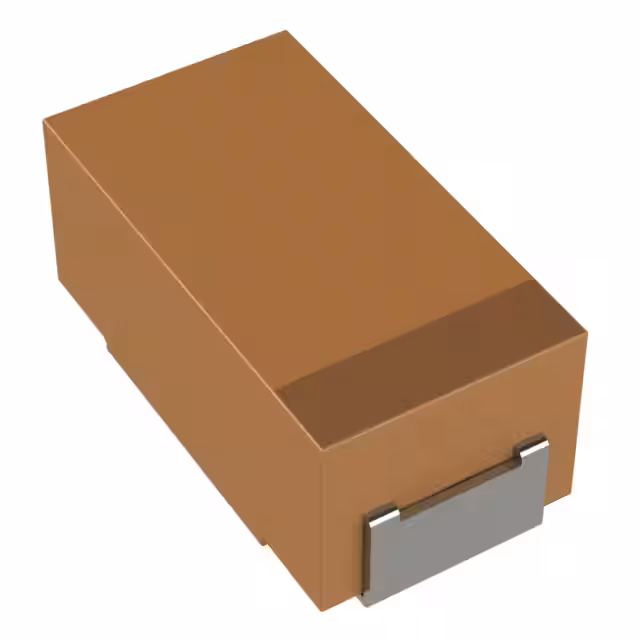

TPSC107K006H0075

Manufacturer :

KYOCERA AVX

Product Category :

Tantalum Capacitors

Voltage - Rated DC :

6.3V

Ripple Current :

1.211A

Tan Delta :

0.06

Width :

3.2mm

Dielectric Material :

TANTALUM (DRY/SOLID)

Tolerance :

10%

Factory Lead Time :

21 Weeks

Lead Free :

Lead Free

Capacitor Type :

TANTALUM CAPACITOR

HTS Code :

8532.21.00.50

Package / Case :

2412

Dissipation Factor :

6 %

ECCN Code :

EAR99

Surface Mount :

yes

Depth :

3.2mm

Packing Method :

TR, 7 INCH

Min Operating Temperature :

-55°C

ESR (Equivalent Series Resistance) :

75mOhm

RoHS Status :

RoHS Compliant

Length :

6mm

Termination :

SMD/SMT

Number of Terminations :

2

Polarity :

POLARIZED

Capacitance :

100μF

JESD-609 Code :

e0

Case Code (Imperial) :

2312

Radiation Hardening :

No

Voltage - Rated :

6.3V

Pbfree Code :

No

Case Code (Metric) :

6032

Max Operating Temperature :

125°C

Leakage Current :

6.3μA

Mounting Feature :

Surface Mount

Packaging :

Tape and Reel (TR)

Terminal Shape :

J BEND

Published :

2016

Terminal Finish :

Tin/Lead (Sn/Pb)

Height :

2.8mm
