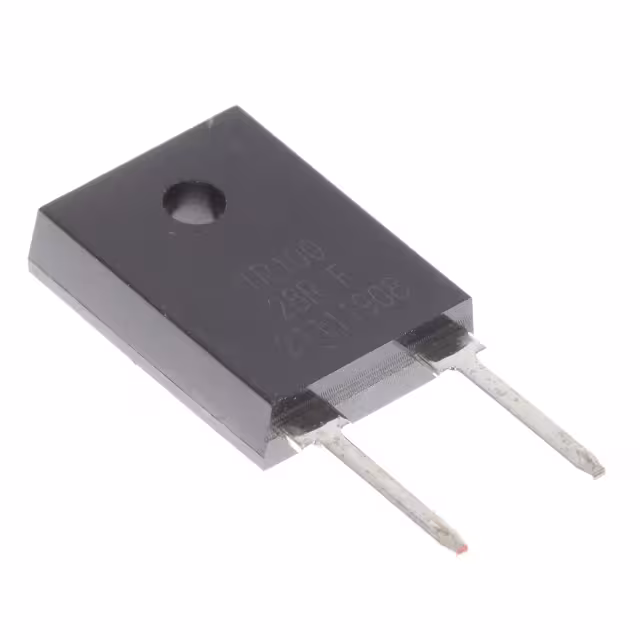

TR20JBC220R

Manufacturer :

Stackpole Electronics, Inc.

Product Category :

Through Hole Resistors

Resistance :

220

Min Operating Temperature :

-65 °C

RoHS :

Non-Compliant

Application :

High Power

Tolerance :

5 %

Composition :

Thick Film

Product Type :

Thick Film Resistors

Packaging :

Bulk

Voltage Rating :

350 V

Product Status :

Obsolete

Additional Feature :

NON-INDUCTIVE, RATED POWER DISSIPATION USING HEATSINK: 20W

Mount :

Radial, Through Hole

Max Operating Temperature :

150 °C

Minimum Operating Temperature :

- 65 C

Maximum Operating Temperature :

+ 150 C

Power (Watts) :

20W

Series :

TR

Package Width :

3.18

Lead Length :

12.7

Failure Rate :

-

Mounting Style :

PCB Mount

Technology :

Thick Film

Lead Spacing :

5.08

Length :

10.41 mm

Width :

3.18 mm

Termination Style :

Radial

Operating Temperature :

-65°C ~ 150°C

Package Length :

10.41

Temperature Coefficient :

50

Mounting Feature :

THROUGH HOLE MOUNT

Height :

16.26 mm

Size / Dimension :

0.410 L x 0.125 W (10.41mm x 3.18mm)

Rated Power Dissipation (P) :

3

Working Voltage :

350

Terminal Finish :

Matte Tin (Sn)

Rated Temperature :

25

Power Rating :

20 W

Supplier Device Package :

TO-220

Size Code :

4112

Terminal Shape :

Flat

Construction :

RECTANGULAR

Package :

Bulk

Package Height :

16.26

Package / Case :

TO-220-2

Height - Seated (Max) :

0.810 (20.58mm)

Packing Method :

Bulk

Subcategory :

Resistors

Features :

Moisture Resistant, Non-Inductive

Number of Terminals :

2

JESD-609 Code :

e3

Resistor Type :

FIXED RESISTOR

Number of Terminations :

2

Package Shape :

RECTANGULAR PACKAGE
