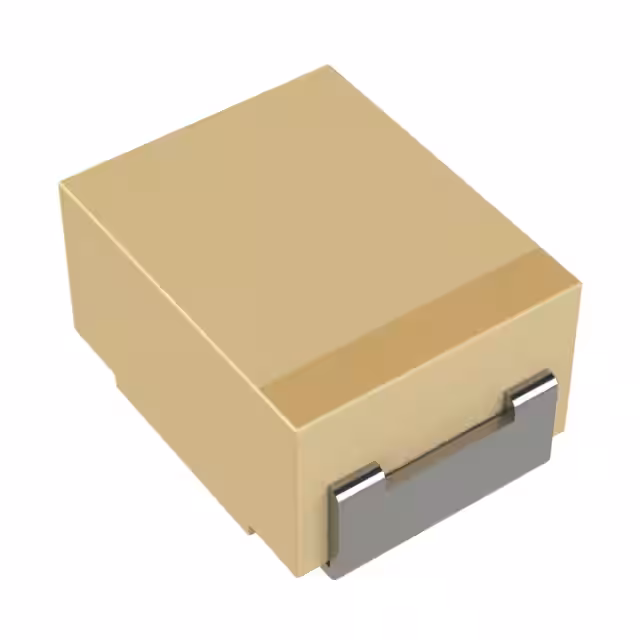

TRJB106K020HRJ

Manufacturer :

KYOCERA AVX

Product Category :

Tantalum Capacitors

ESR (Equivalent Series Resistance) :

2.2Ohm

Mounting Feature :

Surface Mount

Case Code (Metric) :

3528

Number of Terminations :

2

Terminal Finish :

Tin/Lead (Sn/Pb)

Surface Mount :

yes

Dielectric Material :

TANTALUM (DRY/SOLID)

Tan Delta :

0.06

Length :

3.5mm

Max Operating Temperature :

125°C

Width :

2.8mm

Dissipation Factor :

6 %

Terminal Shape :

J BEND

Additional Feature :

STANDARD: AEC-Q200

Weight :

15.989131mg

Packing Method :

TR, 7 INCH

Factory Lead Time :

21 Weeks

Min Operating Temperature :

-55°C

Pbfree Code :

No

JESD-609 Code :

e0

Voltage - Rated :

20V

Polarity :

Polar

Packaging :

Tape and Reel (TR)

Size Code :

1411

HTS Code :

8532.21.00.50

Capacitor Type :

TANTALUM CAPACITOR

Termination :

SMD/SMT

Depth :

2.8mm

Capacitance :

10μF

ECCN Code :

EAR99

Ripple Current :

177mA

Height :

2.1mm

Reference Standard :

AEC-Q200

Leakage Current :

0.0015mA

Case Code (Imperial) :

1210

Tolerance :

10%

RoHS Status :

RoHS Compliant
