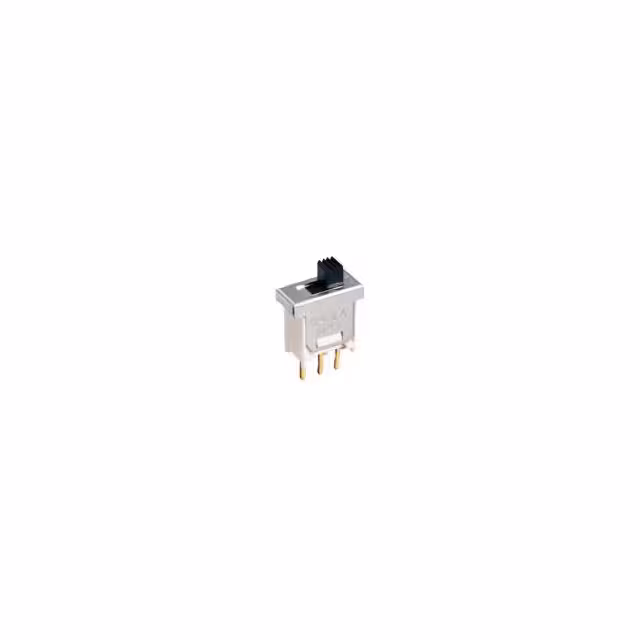

TS01CRE

Manufacturer :

C&K

Product Category :

Base Product Number :

TS01

Body Length (mm) :

10.16

Manufacturer :

CandK Switches

ECCN (US) :

EAR99

Operating Temperature :

-30°C ~ 85°C

Termination Style :

PC Pins

Brand :

CandK

Terminal Length (mm) :

3.3

Circuit :

SPDT

Operating Force :

-

Voltage Rating - AC :

120 V

Product Depth (mm) :

5.08

Product Height (mm) :

12.91

Minimum Operating Temperature (°C) :

-30

Series :

TS

Subcategory :

Switches

Seal Description :

Epoxy

Product Category :

Slide Switches

Electrical Life (Cycles) :

60000

Number of Rows :

1

RoHS Status :

RoHS Compliant

Product Status :

Active

Mounting :

Through Hole

Dielectric Strength :

1000Vrms

Switch Configuration :

ON None ON

Voltage Rating - DC :

28 V

Housing Material :

Stainless Steel

Maximum Operating Temperature (°C) :

85

Contact Timing :

NOT SPECIFIED

Product Type :

Slide Switches

Maximum Current Rating (A) :

3@120VAC 28VDC

Contact Material :

Silver (Ag)

Maximum Contact Resistance (mOhm) :

Body Orientation :

Straight

Electrical Life :

60,000 Cycles

RoHS :

Details

Terminal Pitch (mm) :

2.54

Pole Throw Configuration :

SPDT

Mounting Type :

Through Hole

Mechanical Life :

-

Body Depth (mm) :

5.08

Body Height (mm) :

9.81

Actuator Color :

Black

Number of Terminals :

3

Actuator Material :

Polyamide (PA), Nylon

Contact Finish :

Gold

Switch Function :

On-On

Current Rating (Amps) :

3A (AC/DC)

Minimum Insulation Resistance (MOhm) :

1000

Size Type :

Tiny

Package :

Bulk

Actuator Length (mm) :

3.1

Switch Travel :

3.05mm

Actuator Length :

3.10mm

Seal Location :

Terminals

Actuator Style :

Top Slide

Maximum Power Rating (VA) :

0.4@20VAC 20VDC

Features :

-

Base Material :

Cu Alloy

Actuator Type :

Standard

Product Length (mm) :

10.16
