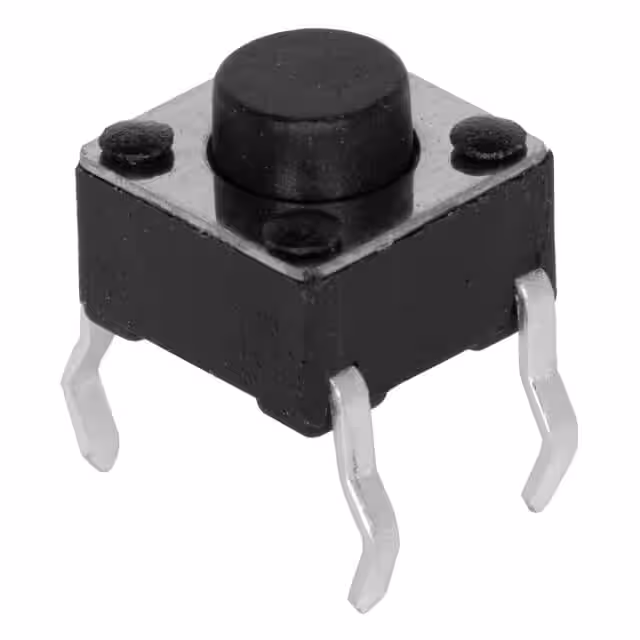

TS02-66-50-BK-260-LCR-D
Or copy the link below:
- Mfr.Part #
- TS02-66-50-BK-260-LCR-D
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- 6 X 6 MM, 5 MM ACTUATOR HEIGHT,
- Stock
- 3,535
- In Stock ：
- 3,535
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Switch Travel :
- 0.25mm
- Contact Form :
- SPST
- Circuit :
- SPST-NO
- Actuator Style :
- Button
- Subcategory :
- Switches
- Manufacturer :
- CUI Devices
- Product Status :
- Active
- Mechanical Life :
- 60,000 Cycles
- IP Rating :
- -
- Ingress Protection :
- -
- Operating Temperature :
- -30°C ~ 80°C
- Operating Force :
- 260gf
- Actuator Type :
- Standard
- Product Type :
- Tactile Switches
- Switch Function :
- Off-Mom
- Actuator :
- Stem
- Product Category :
- Tactile Switches
- Illumination Voltage (Nominal) :
- -
- Type :
- Tactile Switch
- Illumination Color :
- -
- Contact Plating :
- Silver
- Package :
- Bag
- Termination Style :
- PC Pin
- Illumination :
- Non-Illuminated
- Mounting Style :
- Through Hole
- Product :
- Tactile Switch
- Lamp Type :
- -
- Mounting Type :
- Through Hole
- Height :
- 5 mm
- Minimum Operating Temperature :
- - 30 C
- Actuator Material :
- Polyamide (PA66), Nylon 6/6
- Color :
- Black
- Power Rating :
- -
- Current Rating :
- 50 mA
- Base Product Number :
- TS02-66
- Outline :
- 6.00mm x 6.00mm
- Features :
- -
- Actuator Height off PCB, Vertical :
- 5.50mm
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Brand :
- CUI Devices
- Illumination Type, Color :
- -
- Actuator Length, Right Angle :
- -
- Actuator Length :
- 5 mm
- Length :
- 6 mm
- Actuator Orientation :
- Top Actuated
- Maximum Operating Temperature :
- + 80 C
- Width :
- 6 mm
- Series :
- TS02
- Datasheets
- TS02-66-50-BK-260-LCR-D
TS02-66-50-BK-260-LCR-D datasheet pdf and Tactile Switches product details from CUI Devices stock available at
Features:
- 6 x 6 mm body and 5 mm actuator height
- 50 grams force rating
- Black finish
- Latching switch with 260 grams force rating
- Double pole design
Applications: The CUI Devices TS02-66-50-BK-260-LCR-D tactile switch is suitable for a wide range of applications, including consumer electronics, automotive, medical, and industrial control. It is ideal for applications that require a reliable switch with a low actuation force and a long life cycle.
