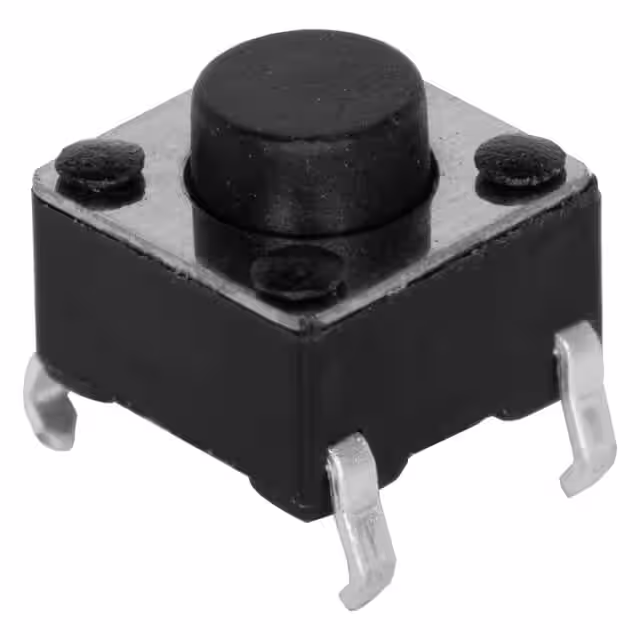

TS02-66-60-BK-260-SCR-D

Manufacturer :

CUI Devices

Product Category :

Product Type :

Tactile Switches

Contact Form :

SPST

Lamp Type :

-

Actuator Type :

Standard

Actuator Orientation :

Top Actuated

Manufacturer :

CUI Devices

Package :

Bag

Operating Temperature :

-30°C ~ 80°C

Length :

6 mm

Actuator Material :

Polyamide (PA66), Nylon 6/6

Mounting Style :

Through Hole

Minimum Operating Temperature :

- 30 C

Type :

Tactile Switch

Mechanical Life :

60,000 Cycles

Contact Plating :

Silver

Mounting Type :

Through Hole

Actuator Length :

6 mm

Brand :

CUI Devices

Outline :

6.00mm x 6.00mm

Product Category :

Tactile Switches

Circuit :

SPST-NO

Series :

TS02

Product Status :

Active

Actuator :

Stem

Termination Style :

PC Pin

Actuator Style :

Button

Maximum Operating Temperature :

+ 80 C

Product :

Tactile Switch

Power Rating :

-

Illumination Color :

-

Illumination Type, Color :

-

Ingress Protection :

-

Illumination Voltage (Nominal) :

-

Switch Function :

Off-Mom

Illumination :

Non-Illuminated

Color :

Black

Subcategory :

Switches

Actuator Height off PCB, Vertical :

6.00mm

Actuator Length, Right Angle :

-

Features :

-

Operating Force :

260gf

Contact Rating @ Voltage :

0.05A @ 12VDC

Height :

6 mm

Width :

6 mm

IP Rating :

-

Current Rating :

50 mA

Base Product Number :

TS02-66

Switch Travel :

0.25mm
