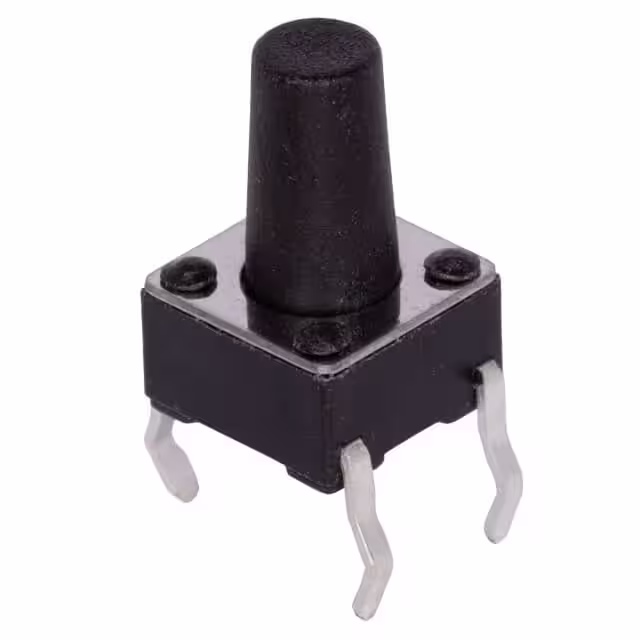

TS02-66-90-BK-100-LCR-D

Manufacturer :

CUI Devices

Product Category :

IP Rating :

-

Series :

TS02

Illumination Color :

-

Mounting Type :

Through Hole

Product :

Tactile Switch

Actuator Style :

Button

Mechanical Life :

100,000 Cycles

Features :

-

Operating Temperature :

-30°C ~ 80°C

Length :

6 mm

Actuator Orientation :

Top Actuated

Height :

9 mm

Illumination Type, Color :

-

Contact Plating :

Silver

Switch Travel :

0.25mm

Color :

Black

Contact Form :

SPST

Ingress Protection :

-

Actuator Length :

9 mm

Switch Function :

Off-Mom

Power Rating :

-

Minimum Operating Temperature :

- 30 C

Actuator Type :

Standard

Lamp Type :

-

Actuator :

Stem

Actuator Height off PCB, Vertical :

9.00mm

Termination Style :

PC Pin

Actuator Material :

Polyamide (PA66), Nylon 6/6

Outline :

6.00mm x 6.00mm

Current Rating :

50 mA

Subcategory :

Switches

Type :

Tactile Switch

Product Type :

Tactile Switches

Contact Rating @ Voltage :

0.05A @ 12VDC

Package :

Bag

Width :

6 mm

Actuator Length, Right Angle :

-

Illumination :

Non-Illuminated

Circuit :

SPST-NO

Illumination Voltage (Nominal) :

-

Mounting Style :

Through Hole

Maximum Operating Temperature :

+ 80 C

Product Status :

Active

Operating Force :

100gf

Base Product Number :

TS02-66
