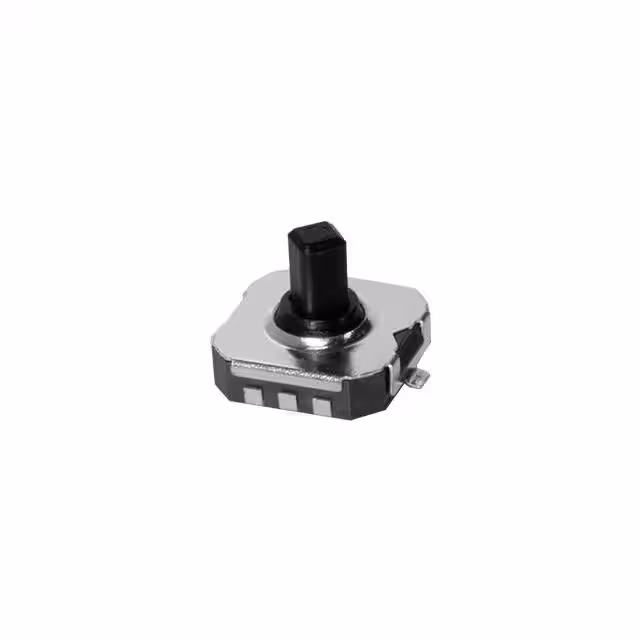

TS12-74-70-BK-360-SMT-TR
Or copy the link below:
- Mfr.Part #
- TS12-74-70-BK-360-SMT-TR
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- 7.4 X 7.4, 7 MM ACTUACTOR HEIGH
- Stock
- 780
- In Stock ：
- 780
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Illumination Type, Color :
- -
- Actuator Type :
- Plunger for Cap
- Actuator Length, Right Angle :
- -
- Illumination :
- Non-Illuminated
- Package :
- Bag
- Actuator Height off PCB, Vertical :
- 7.00mm
- Type :
- Tactile Switch
- Height :
- 7 mm
- Outline :
- 7.40mm x 7.40mm
- Illumination Voltage (Nominal) :
- -
- Actuator Orientation :
- Top Actuated
- Features :
- -
- Minimum Operating Temperature :
- - 30 C
- Product Type :
- Tactile Switches
- Switch Function :
- Off-Mom
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Brand :
- CUI Devices
- Length :
- 7.4 mm
- Ingress Protection :
- -
- Circuit :
- SPST-NO
- Switch Travel :
- 0.25mm
- Travel :
- 0.2 mm
- Actuator Material :
- Polyphthalamide (PPA)
- Mounting Type :
- Surface Mount
- Series :
- TS12
- Width :
- 7.4 mm
- Operating Force :
- 360gf
- Actuator :
- Square
- Mechanical Life :
- 30,000 Cycles
- Product Status :
- Active
- Current Rating :
- 50 mA
- Product Category :
- Tactile Switches
- Subcategory :
- Switches
- Termination Style :
- J Lead
- Operating Temperature :
- -30°C ~ 80°C
- Contact Form :
- SPST
- Manufacturer :
- CUI Devices
- Maximum Operating Temperature :
- + 80 C
- Mounting Style :
- SMD/SMT
- RoHS :
- Details
- Datasheets
- TS12-74-70-BK-360-SMT-TR
TS12-74-70-BK-360-SMT-TR datasheet pdf and Tactile Switches product details from CUI Devices stock available at
