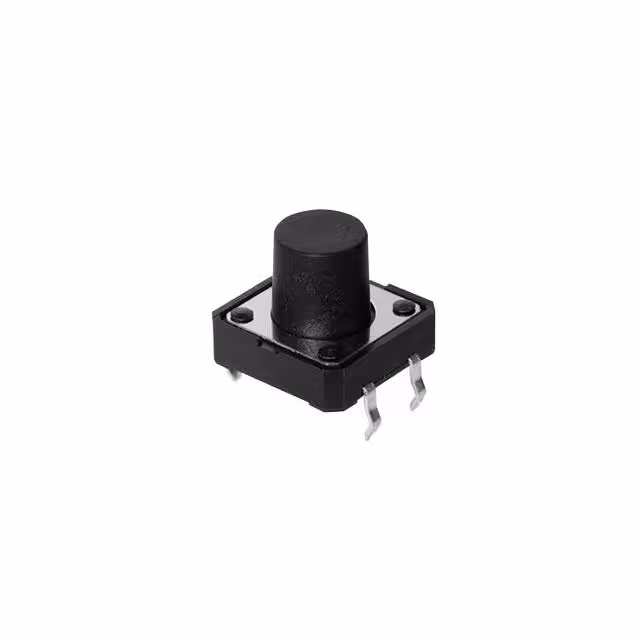

TS14-1212-100-BK-160-SCR-D
Or copy the link below:
- Mfr.Part #
- TS14-1212-100-BK-160-SCR-D
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- 12 X 12 MM, 10 MM ACTUATOR HEIGH
- Stock
- 3,308
- In Stock ：
- 3,308
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Ingress Protection :
- -
- Subcategory :
- Switches
- Outline :
- 12.00mm x 12.00mm
- Actuator Height off PCB, Vertical :
- 10.00mm
- Actuator Orientation :
- Top Actuated
- Manufacturer :
- CUI Devices
- RoHS :
- Details
- Illumination Type, Color :
- -
- Actuator :
- Round
- Height :
- 10 mm
- Product Type :
- Tactile Switches
- Contact Form :
- SPST
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Circuit :
- SPST-NO
- Brand :
- CUI Devices
- Package :
- Bag
- Minimum Operating Temperature :
- - 30 C
- Features :
- -
- Switch Function :
- Off-Mom
- Product Category :
- Tactile Switches
- Actuator Length, Right Angle :
- -
- Current Rating :
- 50 mA
- Mounting Type :
- Through Hole
- Length :
- 12 mm
- Operating Temperature :
- -30°C ~ 80°C
- Illumination Voltage (Nominal) :
- -
- Travel :
- 0.35 mm
- Operating Force :
- 160gf
- Mechanical Life :
- 80,000 Cycles
- Width :
- 12 mm
- Maximum Operating Temperature :
- + 80 C
- Actuator Type :
- Standard
- Switch Travel :
- 0.35mm
- Series :
- TS14
- Type :
- Tactile Switch
- Termination Style :
- PC Pin
- Actuator Material :
- Polyamide (PA66), Nylon 6/6
- Product Status :
- Active
- Mounting Style :
- Through Hole
- Illumination :
- Non-Illuminated
- Datasheets
- TS14-1212-100-BK-160-SCR-D
TS14-1212-100-BK-160-SCR-D datasheet pdf and Tactile Switches product details from CUI Devices stock available at
