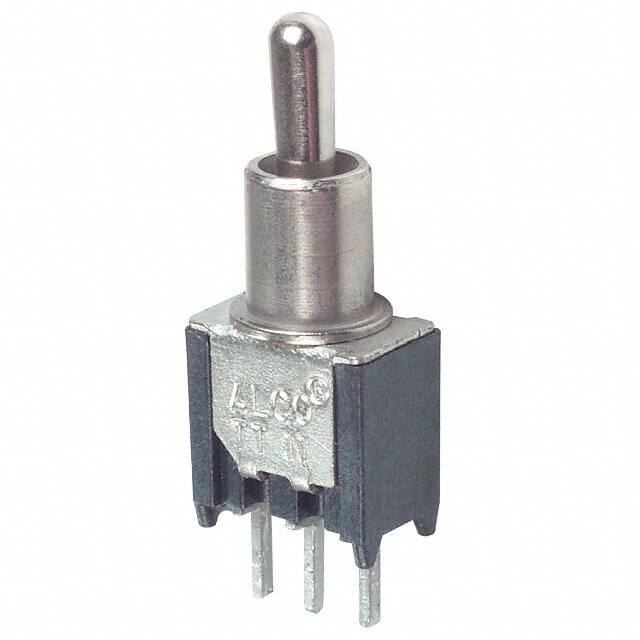

TT11EGPC1
Or copy the link below:
- Mfr.Part #
- TT11EGPC1
- Manufacturer
- TE Connectivity ALCOSWITCH Switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE SPDT 0.4VA 20V
- Stock
- 176
- In Stock ：
- 176
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity ALCOSWITCH Switches
- Product Category :
- Contact Material :
- COPPER ALLOY
- Minimum Operating Temperature :
- - 30 C
- Mounting :
- PC Mount
- DC Voltage Rating (Max) :
- 20
- Illumination Type, Color :
- --
- Seal Location :
- Terminals
- Mounting Type :
- Through Hole
- Base Product Number :
- TT11
- Product Depth (mm) :
- 5.99(mm)
- Actuator Style :
- SHORT BATON LEVER
- Panel Cutout Dimensions :
- --
- Subcategory :
- Switches
- Termination Style :
- PC Pin
- Electrical Life :
- 60,000 Cycles
- Power Rating :
- 400 mVA
- Mounting Style :
- PC Mount
- Illumination Voltage (Nominal) :
- --
- Seal Description :
- Epoxy
- Package :
- Bulk
- Bushing Type :
- Unthreaded
- Contact Resistance Max :
- 20(mohm)
- Actuator Material :
- Brass, Nickel Plated
- Circuit :
- SPDT
- Current Rating (Amps) :
- 0.4VA (AC/DC)
- Product Category :
- Toggle Switches
- Switch Function :
- On-Off-On
- Actuator Length :
- 5.61mm
- Actuator Length (mm) :
- 5.61(mm)
- Illumination :
- Non-Illuminated
- Current Rating :
- 0.4VA (AC/DC)
- Actuator Type :
- Standard Round
- Insulation Resistance :
- 1000(Mohm)
- Thread Size :
- Not Required
- Dielectric Strength :
- 1000Vrms
- Housing Material :
- Thermoplastic (TP)
- Body Orientation :
- Straight
- Operating Temperature Min Deg. C :
- -30C
- Number of Terminals :
- 3
- Product Height (mm) :
- 19.94(mm)
- Operating Temperature Max Deg. C :
- 85C
- Contact Plating :
- Gold
- Manufacturer :
- TE Connectivity
- Type :
- Switch
- Color :
- Black
- Packaging :
- Bulk
- Contact Form :
- SPDT
- Illumination Color :
- -
- Mounting Angle :
- Vertical
- Operating Temp Range :
- -30C to 85C
- Product Status :
- Active
- Actuator :
- Bat
- AC Voltage Rating (Max) :
- 20
- Brand :
- TE Connectivity / PandB
- Lamp Type :
- -
- Operating Temperature :
- -30 to 85 °C
- Pole Throw Configuration :
- SPDT
- Series :
- TT
- Features :
- Epoxy Sealed Terminals
- Product Length (mm) :
- 8.1(mm)
- Bushing Thread :
- Unthreaded
- Product Type :
- Toggle Switches
- Maximum Operating Temperature :
- + 85 C
- Switch Configuration :
- ON OFF ON
- Voltage Rating - AC :
- 20V
- Compliance :
- -
- RoHS :
- N
- Flammability Rating :
- UL 94 V-0
- Voltage Rating - DC :
- 20V
- Ingress Protection :
- --
- Datasheets
- TT11EGPC1
