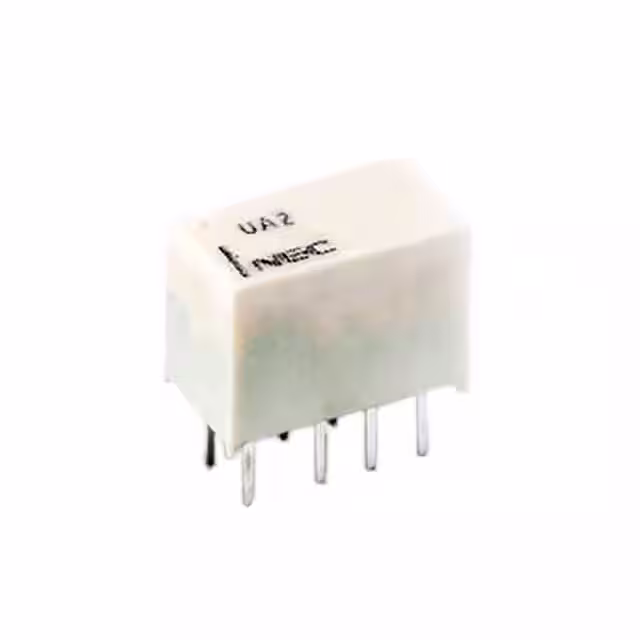

UA2-5NE

Manufacturer :

KEMET

Product Category :

Signal Relays, Up to 2 Amps

Insulation Resistance :

1000000000

Input Switching Control Type :

Random

Coil Current :

1 A

Coil Current(DC)-Max :

.02

Packing Method :

Tube

Coil Power :

100

Relay Form :

2 Form C

Contact Voltage(AC)-Max :

250

Release Time :

1

Coil Voltage(DC)-Max :

5

Number of Terminals :

8

Power Consumption :

100 mW

Termination Type :

Solder

Operate Time :

2

Reference Standard :

CSA; UL

Electrical Life :

100000

Coil/Input Supply Type :

DC

PCB Hole Count :

8

Contact/Output Supply Type :

AC/DC

Weight :

1

Contact Resistance :

100

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Coil Resistance :

250

End Contact Plating :

GOLD ALLOY

Relay Type :

POWER/SIGNAL RELAY

Body Height :

8

Coil Operate Voltage(DC) :

3.75

Contact Current(AC)-Max :

1

Dielectric Strength Between Coil and Contacts :

1500

Contact Current(DC)-Max :

1

Contact Voltage(DC)-Max :

220

Relay Function :

DPDT

Dielectric Strength Between Open Contacts :

1000

Relay Action :

Momentary

Physical Dimension :

10.6mm x 5.7mm x 8mm

Body Length or Diameter :

10.6

End Contact Material :

Silver Alloy

Coil Release Voltage(DC) :

.5

RoHS :

Non-Compliant

Body Breadth :

5.7

Series :

UA2/UB2
