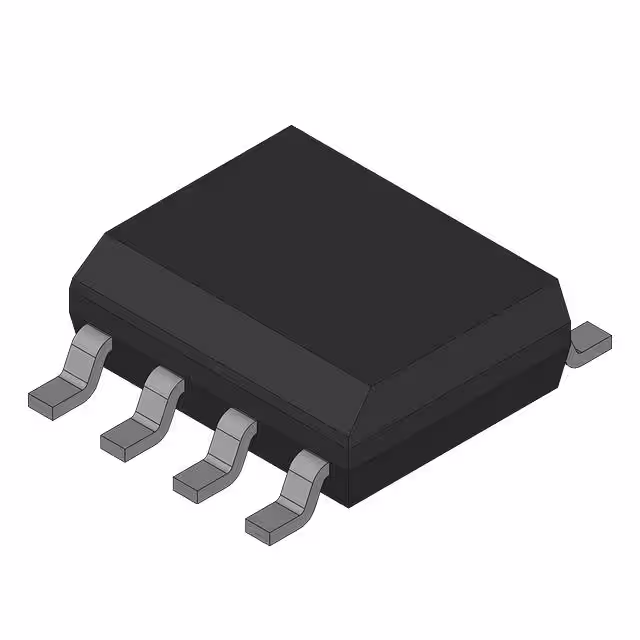

UA741CPS

Manufacturer :

Texas Instruments

Product Category :

Instrumentation, OP Amps, Buffer Amps

Terminal Form :

Gull wing

Gain Bandwidth Product :

1MHz

Surface Mount :

yes

Peak Reflow Temperature (Cel) :

260

JESD-609 Code :

e4

Height Seated (Max) :

2mm

Slew Rate :

0.5 V/us

Qualification Status :

Not Qualified

Operating Temperature (Max) :

70°C

Terminal Position :

Dual

Input Offset Voltage-Max :

7500μV

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Supply Voltage Limit-Max :

18V

Temperature Grade :

COMMERCIAL

Length :

6.2mm

Package / Case :

SOP

Pin Count :

8

Terminal Finish :

NICKEL PALLADIUM GOLD

JESD-30 Code :

R-PDSO-G8

Common Mode Rejection Ratio :

90 dB

Unity Gain BW-Nom :

1000 kHz

Number of Functions :

1

Number of Terminations :

8

Lead Free :

Lead Free

RoHS Status :

RoHS Compliant

Neg Supply Voltage-Max (Vsup) :

-18V

Supply Voltage :

15V

HTS Code :

8542.33.00.01

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Amplifier Type :

Operational Amplifier

Terminal Pitch :

1.27mm

Average Bias Current-Max (IIB) :

0.8μA

Neg Supply Voltage-Nom (Vsup) :

-15V

ECCN Code :

EAR99
