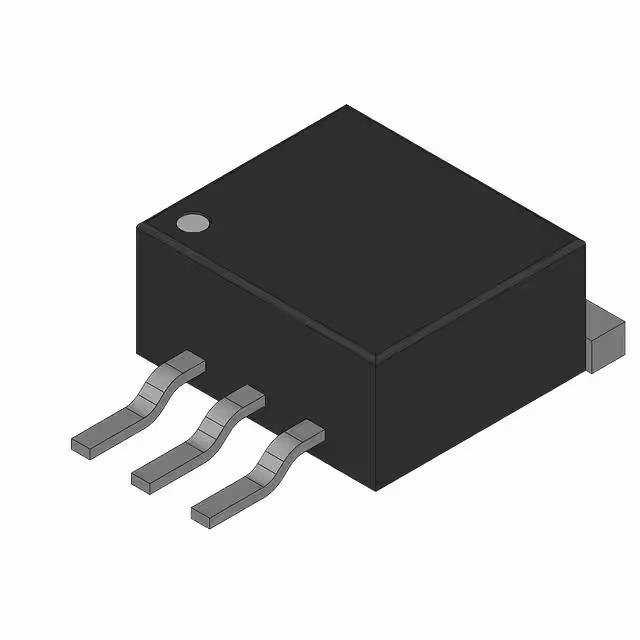

UA78M12CKTP

Manufacturer :

Texas Instruments

Product Category :

Voltage Regulators - Linear

Terminal Position :

Single

RoHS Status :

RoHS Compliant

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Pin Count :

3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Outputs :

1

JESD-30 Code :

R-PSSO-G2

Output Voltage1-Min :

11.4V

Surface Mount :

yes

Input Voltage (Min) :

14.5V

Output Voltage1-Max :

12.6V

Length :

6.145mm

Input Voltage Absolute-Max :

35V

Output Current1-Max :

0.5A

JESD-609 Code :

e0

HTS Code :

8542.39.00.01

Number of Terminations :

2

Number of Functions :

1

Input Voltage (Max) :

30V

Output Voltage 1 :

12V

Regulator Type :

FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

Operating Temperature TJ-Max :

125°C

Dropout Voltage1-Nom :

2.5V

Peak Reflow Temperature (Cel) :

220

Width :

6.04mm

Height Seated (Max) :

2.16mm

Quiescent Current :

4.8mA

Voltage Tolerance-Max :

5%

Qualification Status :

Not Qualified

Lead Free :

Contains Lead

Dropout Voltage :

2V

Adjustability :

FIXED

Load Regulation-Max(%) :

0.24%

Terminal Form :

Gull wing

Terminal Pitch :

2.3mm

ECCN Code :

EAR99

Terminal Finish :

TIN LEAD

Line Regulation-Max (%/V) :

0.1%
