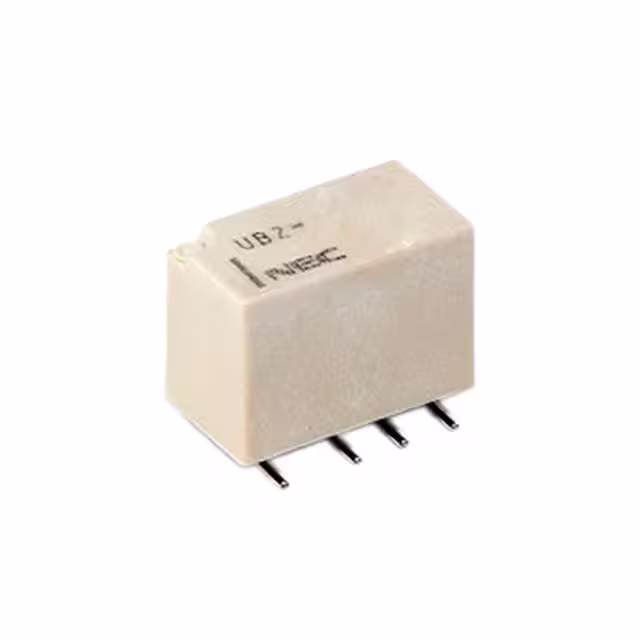

UB2-3NUN

Manufacturer :

KEMET

Product Category :

Signal Relays, Up to 2 Amps

Coil Operate Voltage(DC) :

2.25

Relay Action :

Momentary

Contact Current(AC)-Max :

1

Mounting Feature :

SURFACE MOUNT-STRAIGHT

Contact Voltage(DC)-Max :

220

Physical Dimension :

10.6mm x 5.7mm x 8.8mm

Relay Function :

DPDT

Coil Power :

140

Series :

UA2/UB2

Input Switching Control Type :

Random

Relay Type :

POWER/SIGNAL RELAY

Contact/Output Supply Type :

AC/DC

Relay Form :

2 Form C

Weight :

1

Packing Method :

Tube

Dielectric Strength Between Open Contacts :

1000

Coil Release Voltage(DC) :

.3

Body Height :

8.8

Body Breadth :

5.7

Body Length or Diameter :

10.6

Reference Standard :

CSA; TUV; UL

Coil Voltage(DC)-Max :

3

Number of Terminals :

8

Coil Resistance :

64.3

Insulation Resistance :

1000000000

Electrical Life :

100000

Operate Time :

2

Termination Type :

Solder

PCB Hole Count :

8

Dielectric Strength Between Coil and Contacts :

1500

Contact Resistance :

100

Contact Voltage(AC)-Max :

250

End Contact Plating :

GOLD ALLOY

Release Time :

1

End Contact Material :

Silver Alloy

Coil/Input Supply Type :

DC

Contact Current(DC)-Max :

1

Coil Current(DC)-Max :

.047
