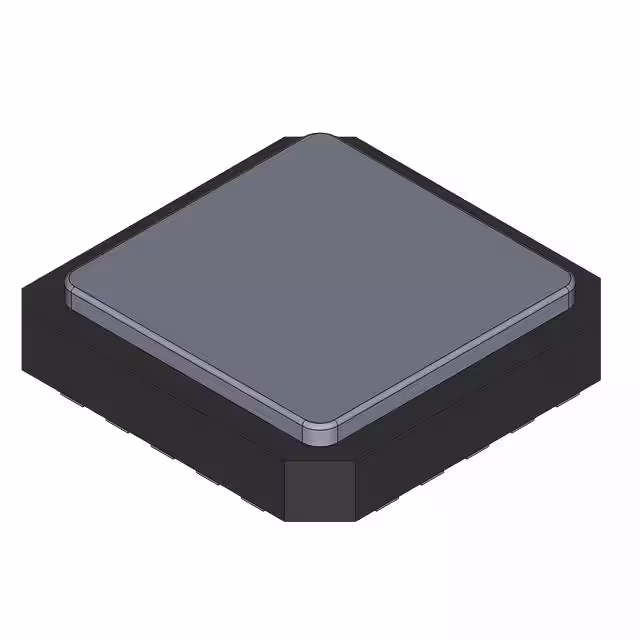

UC1709L

Manufacturer :

Unitrode

Product Category :

Gate Drivers

Pin Count :

20

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Functions :

2

Output Characteristics :

TOTEM-POLE

Width :

8.89 mm

Terminal Form :

NO LEAD

Qualification Status :

Not Qualified

JESD-30 Code :

S-CQCC-N20

HTS Code :

8542.39.00.01

Reach Compliance Code :

not_compliant

Factory Lead Time :

6 Weeks

Output Peak Current Limit-Nom :

1 A

Input Characteristics :

Standard

Output Current-Max :

1.5 A

Terminal Position :

QUAD

ECCN Code :

EAR99

Terminal Pitch :

1.27 mm

Brand Name :

Texas

Number of Terminals :

20

Surface Mount :

yes

Power Supplies :

20 V

Interface IC Type :

BUFFER OR INVERTER BASED MOSFET DRIVER

Length :

8.89 mm

High Side Driver :

No

Temperature Grade :

Military

Screening Level :

MIL-STD-883 Class B

Supply Current-Max :

12 mA

Package Shape :

Square

Seated Height-Max :

2.03 mm
