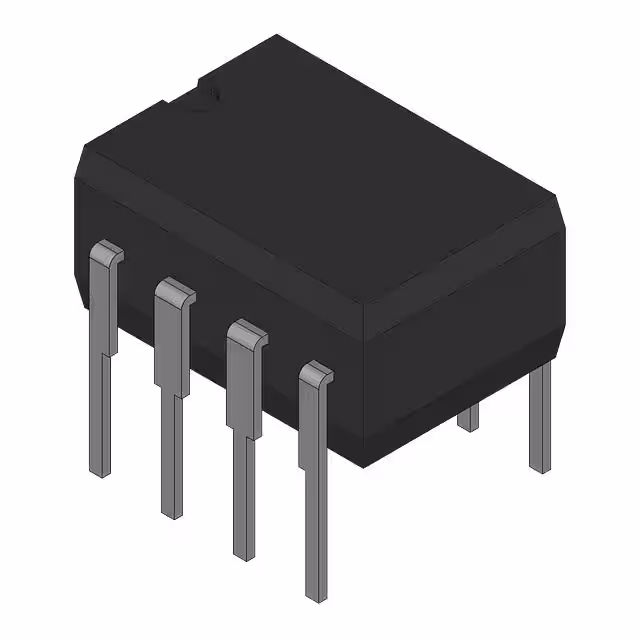

UC2845AJ

Manufacturer :

Texas Instruments

Product Category :

DC DC Switching Controllers

Input Voltage-Nom :

15 V

Output Configuration :

Positive, Isolation Capable

Surface Mount :

No

Seated Height-Max :

5.08 mm

Switching Frequency-Max :

500 kHz

Clock Sync :

No

Number of Outputs :

1

Analog IC - Other Type :

SWITCHING CONTROLLER

Number of Functions :

1

Synchronous Rectifier :

No

Mounting Type :

Through Hole

RoHS :

Non-Compliant

Manufacturer :

Rochester Electronics LLC

Temperature Grade :

Industrial

Output Current-Max :

1 A

Supplier Device Package :

8-CDIP

Duty Cycle (Max) :

48%

Control Mode :

CURRENT-MODE

Package Shape :

RECTANGULAR

Terminal Pitch :

2.54 mm

Control Features :

Frequency Control

Output Phases :

1

Frequency - Switching :

Up to 500kHz

Function :

Step-Up, Step-Up/Step-Down

Product Status :

Active

Pin Count :

8

Voltage - Supply (Vcc/Vdd) :

7.6V ~ 30V

Operating Temperature :

-40°C ~ 85°C (TA)

Switcher Configuration :

Push-Pull

Package / Case :

8-CDIP (0.300, 7.62mm)

Terminal Form :

THROUGH-HOLE

Output Type :

Transistor Driver

Series :

-

Terminal Position :

Dual

Control Technique :

PULSE WIDTH MODULATION

Reach Compliance Code :

Unknown

Serial Interfaces :

-

Package :

Bulk

JESD-30 Code :

R-GDIP-T8

Topology :

Boost, Buck, Flyback, Forward

Width :

7.62 mm

Number of Terminals :

8

Qualification Status :

COMMERCIAL
