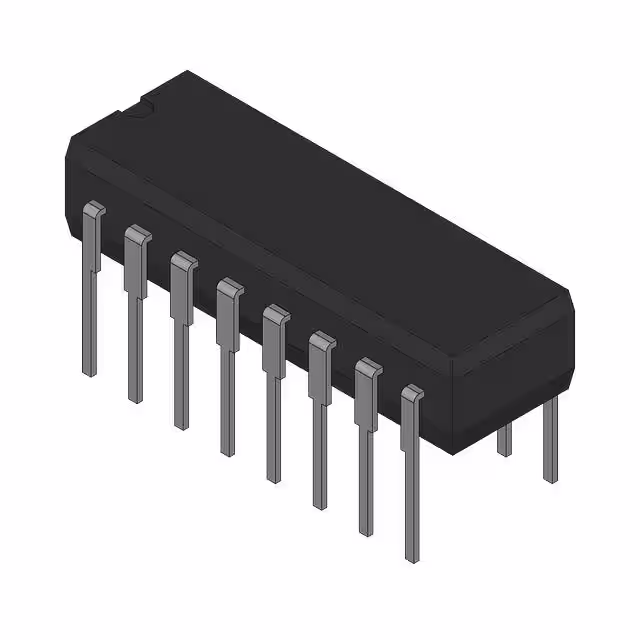

UC3524AJ

Manufacturer :

Unitrode

Product Category :

DC DC Switching Controllers

Min Operating Temperature :

0°C

Terminal Pitch :

2.54mm

Topology :

Flyback, Push-Pull, Boost

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Reach Compliance Code :

not_compliant

RoHS Status :

Non-RoHS Compliant

Input Voltage-Nom :

20V

Number of Functions :

1

Control Technique :

PULSE WIDTH MODULATION

Duty Cycle (Max) :

45 %

Temperature Grade :

COMMERCIAL

Lead Free :

Contains Lead

Terminal Form :

THROUGH-HOLE

Thickness :

4.57mm

Output Voltage :

5V

Height :

5.08mm

ECCN Code :

EAR99

Pin Count :

16

Analog IC - Other Type :

SWITCHING CONTROLLER

Number of Terminations :

16

Packaging :

Rail/Tube

Input Voltage (Min) :

1V

Qualification Status :

Not Qualified

Surface Mount :

No

Terminal Position :

Dual

Current - Output :

200A

Length :

19.56mm

Package / Case :

CDIP

Control Mode :

VOLTAGE-MODE

Frequency - Switching :

500kHz

HTS Code :

8542.39.00.01

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Width :

6.92mm

Voltage - Output :

60V

Number of Pins :

16

Max Supply Voltage :

40V

Max Operating Temperature :

70°C
