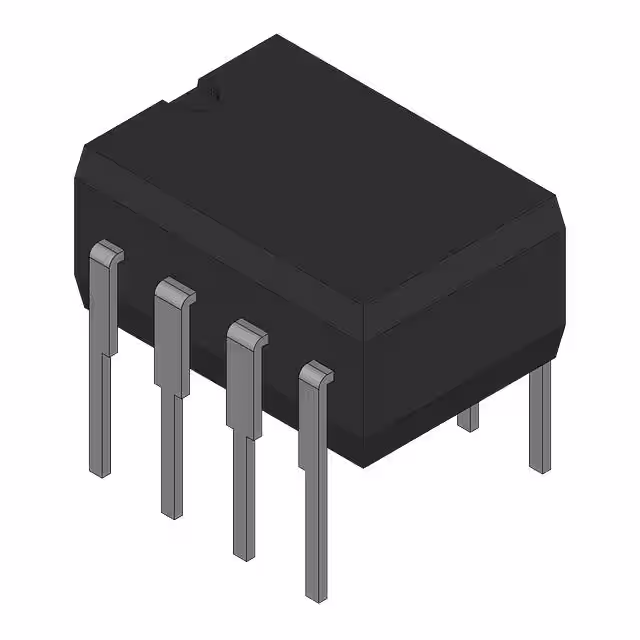

UC3844J

Manufacturer :

Texas Instruments

Product Category :

DC DC Switching Controllers

Synchronous Rectifier :

No

Clock Sync :

No

Seated Height-Max :

5.08 mm

Output Phases :

1

Output Configuration :

Positive, Isolation Capable

Terminal Finish :

TIN LEAD

Pbfree Code :

No

Voltage - Supply (Vcc/Vdd) :

12V ~ 28V

Input Voltage-Nom :

15 V

Number of Functions :

1

Mounting Type :

Through Hole

Package / Case :

8-CDIP (0.300, 7.62mm)

Length :

9.58 mm

Operating Temperature :

0°C ~ 70°C (TA)

Analog IC - Other Type :

SWITCHING CONTROLLER

Number of Terminals :

8

Number of Outputs :

1

Topology :

Boost, Buck, Buck-Boost, Flyback, Forward

Surface Mount :

No

Output Current-Max :

1 A

Product Status :

Active

Package :

Bulk

Terminal Position :

Dual

Series :

-

Switching Frequency-Max :

500 kHz

Control Features :

Frequency Control

Control Mode :

CURRENT-MODE

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Output Type :

Transistor Driver

Temperature Grade :

COMMERCIAL

Function :

Step-Up, Step-Down, Step-Up/Step-Down

Reach Compliance Code :

Unknown

JESD-30 Code :

R-GDIP-T8

Switcher Configuration :

Single

JESD-609 Code :

e0

Duty Cycle (Max) :

48%

Pin Count :

8

Manufacturer :

Rochester Electronics LLC

Width :

7.62 mm

Terminal Pitch :

2.54 mm

Frequency - Switching :

Up to 500kHz

Control Technique :

PULSE WIDTH MODULATION

Supplier Device Package :

8-CDIP

Terminal Form :

THROUGH-HOLE

Package Shape :

RECTANGULAR

Serial Interfaces :

-
