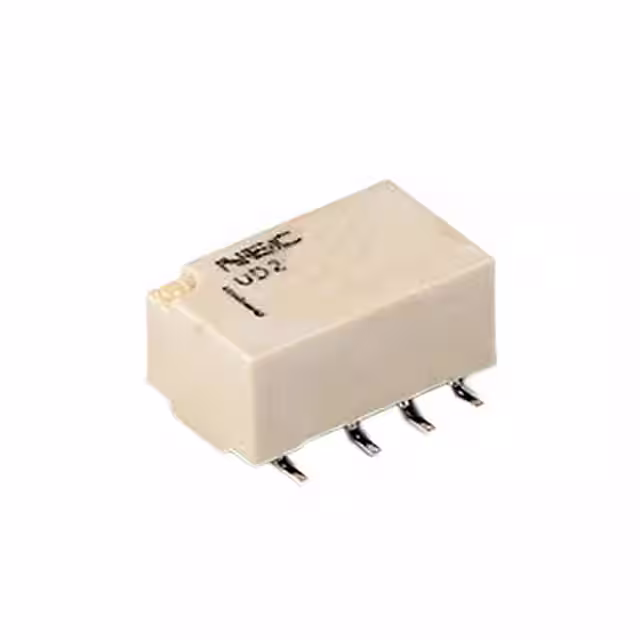

UD2-3NU

Manufacturer :

KEMET

Product Category :

Signal Relays, Up to 2 Amps

Coil Power :

140

Mounting Feature :

SURFACE MOUNT-STRAIGHT

Contact Current(DC)-Max :

1

Contact Voltage(AC)-Max :

250

Contact Voltage(DC)-Max :

220

Body Height :

5.45

Operate Time :

2

Relay Form :

2 Form C

Relay Function :

DPDT

Dielectric Strength Between Open Contacts :

1000

Contact Resistance :

100

Body Length or Diameter :

10.6

Dielectric Strength Between Coil and Contacts :

1500

Series :

UC2/UD2

Release Time :

1

Relay Action :

LATCHED

Coil/Input Supply Type :

DC

Physical Dimension :

10.6mm x 6.5mm x 5.45mm

Electrical Life :

100000

Termination Type :

Solder

Relay Type :

POWER/SIGNAL RELAY

Body Breadth :

6.5

End Contact Plating :

GOLD ALLOY

Number of Terminals :

8

Contact Current(AC)-Max :

1

Contact/Output Supply Type :

AC/DC

End Contact Material :

Silver Alloy

Weight :

0.8

Coil Release Voltage(DC) :

.3

Input Switching Control Type :

Random

Coil Operate Voltage(DC) :

2.25

Reference Standard :

CSA; TUV; UL

Insulation Resistance :

1000000000

Coil Resistance :

64.3
