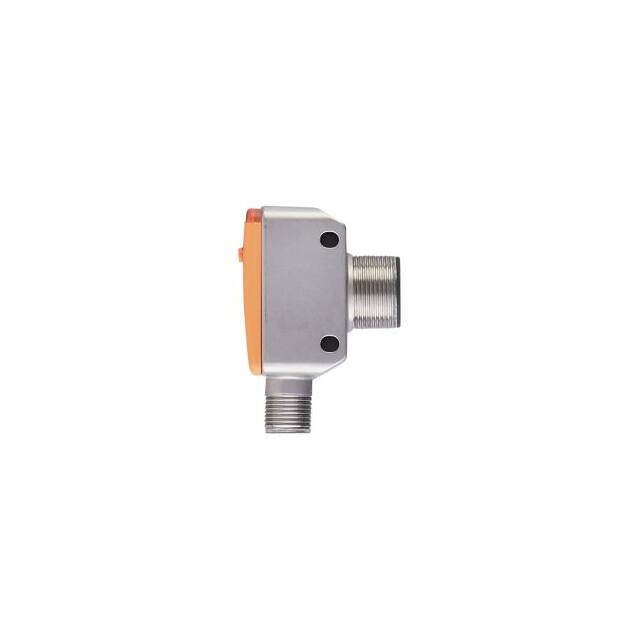

UGT581

Manufacturer :

ifm Efector

Product Category :

Proximity Sensors - Industrial

Thread Size :

M18 x 1

Maximum Operating Temperature :

+70°C

Depth :

37.7mm

Switching Current :

35 mA

RoHS :

Non-Compliant

Standards Met :

CE, cULus, cULus Recognised, EN 55011, EN 60068-2-27, EN 60068-2-6, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, UL

Supply Voltage :

10 → 30 V dc

Switching Frequency :

8 Hz

Terminal Type :

4-Pin M12 Connector

Length :

53mm

Body Style :

Block

Minimum Operating Temperature :

-20°C

Output Type :

Analogue, PNP

Housing Material :

Epoxy Glass Ceramic, PBT, Polyamide, Stainless Steel

IP Rating :

IP67

Width :

20mm
