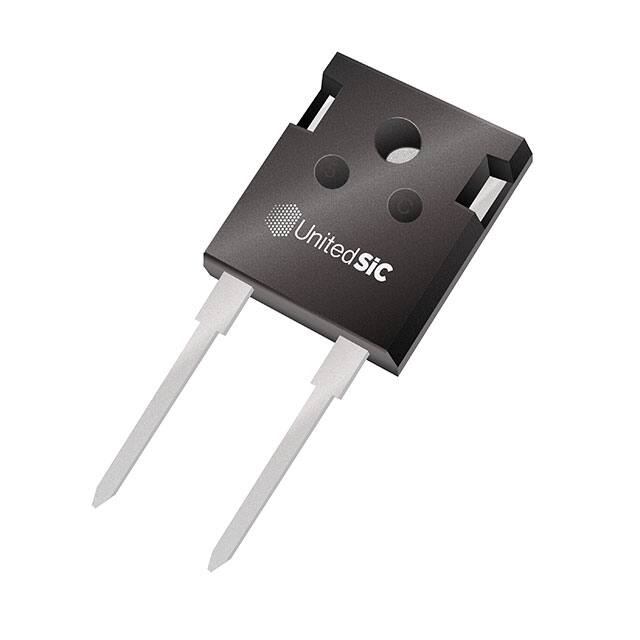

UJ3D1220K2

Manufacturer :

UnitedSiC

Product Category :

Diodes - Rectifiers - Single

Product Status :

Active

Voltage - DC Reverse (Vr) (Max) :

1200 V

Configuration :

Single

Product Type :

Schottky Diodes and Rectifiers

Brand :

UnitedSiC

Capacitance @ Vr, F :

810pF @ 1V, 1MHz

Current - Reverse Leakage @ Vr :

190 μA @ 1200 V

Technology :

SiC

Package / Case :

TO-247-2

Speed :

No Recovery Time > 500mA (Io)

RoHS :

Details

Voltage - Forward (Vf) (Max) @ If :

1.7 V @ 20 A

Reverse Recovery Time (trr) :

0 ns

Packaging :

Tube

Manufacturer :

UnitedSiC

Supplier Device Package :

TO-247-2

Subcategory :

Diodes and Rectifiers

Mounting Style :

Through Hole

Package :

Tube

Diode Type :

Silicon Carbide Schottky

Series :

-

Base Product Number :

UJ3D1220

Product Category :

Schottky Diodes and Rectifiers

Operating Temperature - Junction :

-55°C ~ 175°C

Current - Average Rectified (Io) :

20A

Mounting Type :

Through Hole

Vf - Forward Voltage :

1.52 V

Maximum Operating Temperature :

+ 175 C

Qualification :

AEC-Q101

Product :

Schottky Silicon Carbide Diodes

Minimum Operating Temperature :

- 55 C
