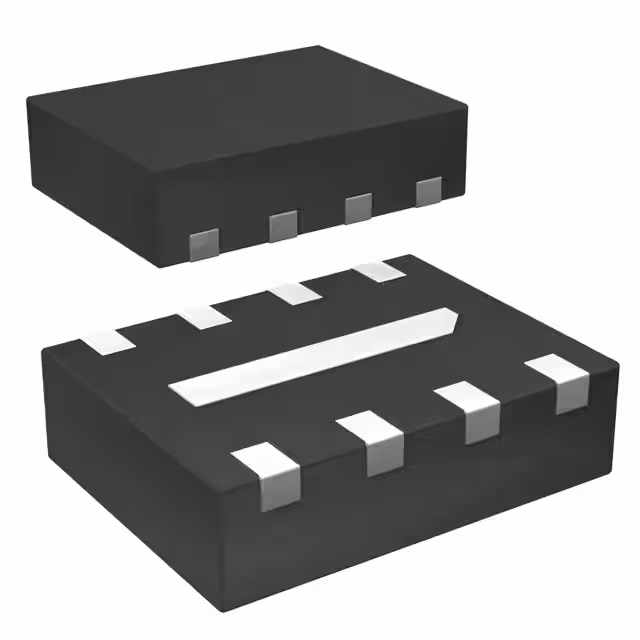

UM4717Q
Or copy the link below:
- Mfr.Part #
- UM4717Q
- Manufacturer
- Union Semiconductor (HK) Limited
- Package / Case
- QFN-10_1.8x1.4mm
- Datasheet
- Download
- Description
- DUAL SPDT ANALOG SWITCH
- Stock
- 9,966
- In Stock ：
- 9,966
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Union Semiconductor (HK) Limited
- Product Category :
- Analog Switches, Multiplexers, Demultiplexers
- Operating Temperature :
- -40°C ~ 85°C
- Number of Circuits :
- 2
- Voltage - Supply, Single (V+) :
- 1.8V ~ 5.5V
- Switch Circuit :
- SPDT
- Switch Time (Ton, Toff) (Max) :
- 80ns, 40ns
- Charge Injection :
- -
- Multiplexer/Demultiplexer Circuit :
- 2:1
- Crosstalk :
- -70dB @ 10MHz
- Product Status :
- Active
- Current - Leakage (IS(off)) (Max) :
- 500pA
- RoHS Status :
- RoHS Compliant
- Mounting Type :
- Surface Mount
- Supplier Device Package :
- 10-QFN (1.8x1.4)
- Channel Capacitance (CS(off), CD(off)) :
- -
- Package / Case :
- QFN-10_1.8x1.4mm
- Voltage - Supply, Dual (V±) :
- -
- On-State Resistance (Max) :
- 3.5Ohm
- Package :
- Tape and Reel (TR)
- Packaging :
- Tape and Reel (TR)
- -3db Bandwidth :
- 300MHz
- Series :
- -
- Datasheets
- UM4717Q
Analog Switches, Multiplexers, Demultiplexers Union Semiconductor (HK) Limited UM4717Q Overview
The UM4717Q from Union Semiconductor (HK) Limited is a high-performance dual SPDT analog switch designed to meet the demanding needs of modern electronic applications. This device integrates two single-pole, double-throw (SPDT) switches into one compact package, providing efficient routing and switching of analog or digital signals. Its low on-resistance and low crosstalk make it an ideal choice for audio, data, and signal management applications where high signal integrity is crucial. Utilizing advanced silicon gate CMOS technology, the UM4717Q ensures minimal power consumption combined with high switching speed, making it highly suitable for portable and battery-powered devices. The robust design also ensures reliability and long-term performance, positioning the Analog Switches, Multiplexers, Demultiplexers Union Semiconductor (HK) Limited UM4717Q as a preferred component for a multitude of applications.
UM4717Q Features
- Low on-resistance: Facilitates better signal integrity and reduces power loss.
- High switching speed: Suitable for applications requiring fast signal routing.
- Low power consumption: Ideal for use in battery-operated devices.
- Dual SPDT configuration: Allows for more compact designs and simplified circuit layouts.
- Wide operating voltage range: Ensures compatibility with various signal levels.
- ESD protection: Provides robustness against electrostatic discharges, enhancing device durability.
UM4717Q Applications
- Audio and Video Equipment: In audio and video signal routing, the UM4717Q can switch between different signal paths without degrading signal quality, ideal for mixers, selectors, and professional AV systems.
- Data Communication: Utilized in data acquisition systems for routing and managing data streams efficiently, ensuring minimal signal loss and high data integrity.
- Signal Routing: Employs in complex signal routing scenarios where multiple input and output configurations are necessary, like in telecommunications and network switches.
- Portable Devices: Due to its low power consumption, it is perfect for portable electronic devices, ensuring longer battery life and high efficiency.
- Medical Instruments: Used in medical devices for precise and reliable signal management, critical for accurate diagnostics and monitoring.
