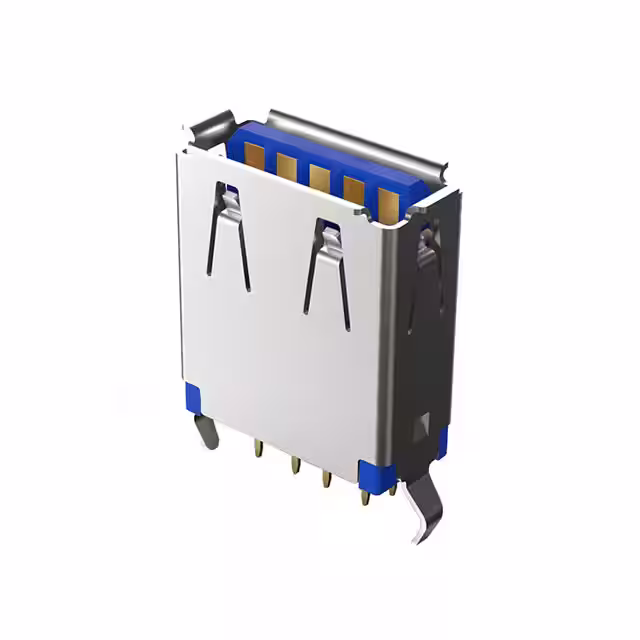

USB1086-GF-B
Or copy the link below:
- Mfr.Part #
- USB1086-GF-B
- Manufacturer
- GCT
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT USB A 3.0 9P HI MATING
- Stock
- 525
- In Stock ：
- 525
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- GCT
- Product Category :
- USB, DVI, HDMI Connector Assemblies
- Operating Temperature :
- -40°C ~ 85°C
- Voltage Rating :
- 30 V
- Contact Finish :
- Gold
- Shell Plating :
- Nickel
- Mounting Style :
- PCB Mount
- Manufacturer :
- Global Connector Technology (GCT)
- RoHS :
- Details
- Material Flammability Rating :
- UL94 V-0
- Orientation :
- Vertical
- Connector Type :
- USB-A (USB TYPE-A)
- Product Category :
- USB Connectors
- Mounting Feature :
- Vertical
- Product :
- USB Type A Connectors
- Brand :
- GCT
- Minimum Operating Temperature :
- - 40 C
- Product Type :
- USB Connectors
- Shielding :
- Shielded
- Voltage - Rated :
- 30V
- Maximum Operating Temperature :
- + 85 C
- Type :
- High Mating Cycles
- Contact Material :
- COPPER ALLOY
- Current Rating (Amps) :
- 0.25A, 3A
- Number of Contacts :
- 9
- IP Rating :
- -
- Packaging :
- Tray
- Features :
- Board Lock
- Board Thickness :
- 1.6 mm
- Number of Ports :
- 1
- Color :
- Blue
- Standard :
- USB 3.0
- Contact Plating :
- Gold Flash Plated Contacts
- Ingress Protection :
- -
- Insulation Resistance :
- 100 MOhms
- Specifications :
- USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
- Shell/Shielding Material :
- Steel (SUS201)
- Mounting Angle :
- Vertical
- Current Rating :
- 3 A
- Mounting Type :
- Through Hole
- Package :
- Tray
- Termination Style :
- Through Hole
- Gender :
- Receptacle
- Product Status :
- Active
- Termination :
- Solder
- Subcategory :
- USB Connectors
- Mating Cycles :
- 20000
- Base Product Number :
- USB1086
- Series :
- USB1086
- Flammability Rating :
- UL 94 V-0
- Insulation Color :
- Blue
- Datasheets
- USB1086-GF-B
