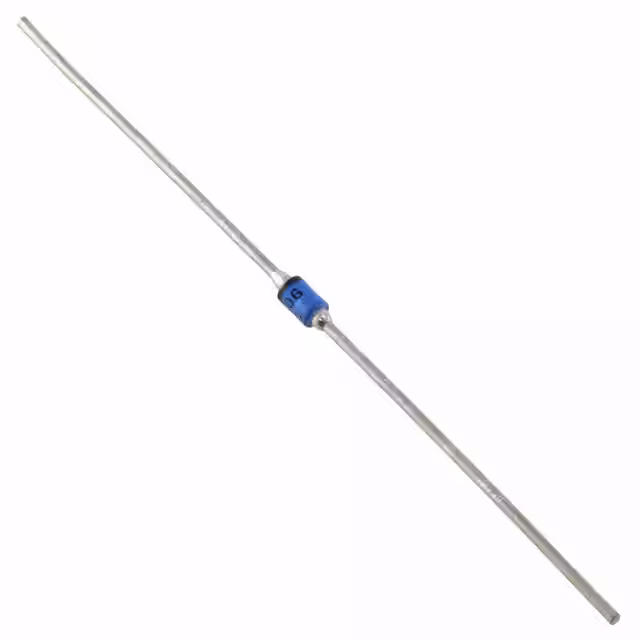

UTR40

Manufacturer :

Microchip Technology

Product Category :

Diodes - Rectifiers - Single

Capacitance @ Vr, F :

60pF @ 0V, 1MHz

Reverse Test Voltage :

400 V

Number of Phases :

1

Package / Case :

A, Axial

Reverse Current-Max :

3 µA

Terminal Finish :

Tin/Lead (Sn/Pb)

Supplier Device Package :

A, Axial

Terminal Position :

Axial

Product Category :

Rectifiers

JESD-609 Code :

e0

Product Type :

Rectifiers

Manufacturer :

Microchip

Output Current-Max :

0.5 A

Reverse Recovery Time-Max :

0.35 μs

Voltage - Forward (Vf) (Max) @ If :

1.1 V @ 200 mA

Package :

Bulk

Operating Temperature - Junction :

-65°C ~ 175°C

Terminal Form :

Wire

Reverse Recovery Time (trr) :

350 ns

Series :

-

Subcategory :

Diodes and Rectifiers

Case Connection :

Isolated

Current - Average Rectified (Io) :

500mA

Number of Terminals :

2

Brand :

Microchip Technology / Atmel

Voltage - DC Reverse (Vr) (Max) :

400 V

JESD-30 Code :

O-XALF-W2

Reach Compliance Code :

Unknown

Diode Element Material :

SILICON

Non-rep Pk Forward Current-Max :

15 A

Mounting Type :

Through Hole

Current - Reverse Leakage @ Vr :

3 μA @ 400 V

Package Shape :

Round

Diode Type :

Standard

Surface Mount :

No

Number of Elements :

1

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Rep Pk Reverse Voltage-Max :

400 V

Application :

FAST RECOVERY

Configuration :

Single

Product :

Rectifiers

Product Status :

Active
