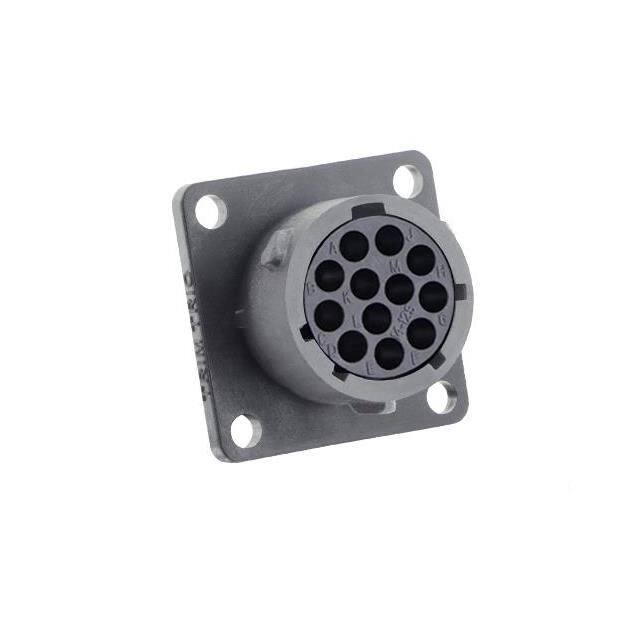

UTSX01412S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Housings

Package :

Bag

Series :

Trim Trio? UTSX

Current Rating :

16 A

Contact Size :

16

Shell Size, MIL :

-

Shell Material :

Polyamide (PA), Nylon

Mounting Style :

Panel

Type :

For Female Sockets

Mounting Feature :

Flange

Note :

Contacts Not Included

Shell Finish :

-

Housing Color :

Black

Termination Style :

Crimp

Manufacturer :

Souriau

Contact Shape :

Circular

Contact Gender :

Socket (Female)

Product Status :

Active

IP Rating :

IP69X

Mounting Type :

Panel Mount

Fastening Type :

Bayonet Lock

Operating Temperature :

-40°C ~ 105°C

Color :

Black

Wire Gauge :

14 AWG

Voltage Rating :

500 V

Contact Material :

Brass

Mounting Angle :

Straight

Shell Size :

14

Primary Material :

Plastic

Contact Type :

Crimp

Brand :

Souriau

Features :

UV Resistant

Flammability Rating :

UL 94 V-0

Mating Style :

Bayonet

Orientation :

N (Normal)

Product :

Receptacles

Shell Style :

Square Flange

Includes :

-

Subcategory :

Circular Connectors

Mating Cycles :

250 Cycle

Accessory Type :

-

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Insert Material :

Polyamide (PA), Nylon

Shielding :

Unshielded

Product Category :

Standard Circular Connector

Connector Type :

Receptacle Housing

Number of Positions :

12

Material Flammability Rating :

UL94 V-0

Contact Plating :

Gold

Shell Size - Insert :

14-12

Product Type :

Standard Circular Connector
