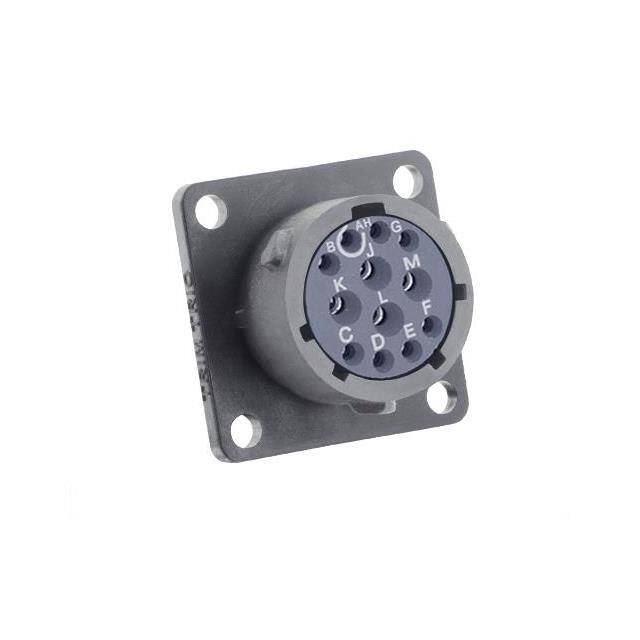

UTSX014D12S
Or copy the link below:
- Mfr.Part #
- UTSX014D12S
- Manufacturer
- Souriau-Sunbank by Eaton
- Package / Case
- Datasheet
- Download
- Description
- SQUARE FLANGE RECEPTACLE, WITHOU
- Stock
- 1,032
- In Stock ：
- 1,032
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Souriau-Sunbank by Eaton
- Product Category :
- Circular Connector Assemblies
- Material Flammability Rating :
- UL94 HB
- Contact Finish - Mating :
- Gold
- Contact Material :
- Brass
- Connector Type :
- Receptacle, Female Sockets
- Fastening Type :
- Bayonet Lock
- Wire Gauge :
- 20 AWG,16 AWG
- Contact Finish Thickness - Mating :
- Flash
- Mounting Type :
- Panel Mount, Through Hole
- Orientation :
- N (Normal)
- Color :
- Black
- Features :
- UV Resistant
- Product Type :
- Standard Circular Connector
- IP Rating :
- IP69X
- Cable Opening :
- -
- Product Status :
- Active
- Shell Finish :
- -
- Contact Gender :
- Socket (Female)
- Mating Cycles :
- 250 Cycle
- Mounting Style :
- Panel
- Series :
- Trim Trio? UTSX
- Termination :
- Solder
- Shell Material :
- Polyamide (PA), Nylon
- Mating Style :
- Bayonet
- Shielding :
- Unshielded
- Current Rating :
- +/- 5 A, +/- 10 A
- Shell Size, MIL :
- -
- Brand :
- Souriau
- Subcategory :
- Circular Connectors
- Package :
- Bag
- Flammability Rating :
- UL 94 HB
- Mounting Feature :
- Flange
- Backshell Material, Plating :
- -
- Voltage Rating :
- 250V, 600V
- Shell Size :
- 14
- Number of Positions :
- 12
- Ingress Protection :
- IP68/IP69K - Dust Tight, Water Resistant, Waterproof
- Applications :
- -
- Product Category :
- Standard Circular Connector
- Shell Size - Insert :
- 14-12
- Contact Plating :
- Gold
- Current Rating (Amps) :
- 5A, 10A
- Primary Material :
- Plastic
- Termination Style :
- Solder
- Manufacturer :
- Souriau
- Product :
- Receptacles
- Insert Material :
- Neoprene
- Operating Temperature :
- -40°C ~ 105°C
- Mounting Angle :
- Straight
- Shell Style :
- Square Flange
- Datasheets
- UTSX014D12S
Receptacle, Female Sockets Polyamide (PA), Nylon Panel Mount, Through Hole 12 Positions Solder Gold - N (Normal) Bayonet Lock
UTSX014D12S Overview
This product is packaged in a Receptacle, Female Sockets box.Panel Mount, Through Hole indicates that the device is mounted.The product is a part of the Trim Trio? UTSX Series.Operating temperature is set to -40°C ~ 105°C.
UTSX014D12S Features
Trim Trio? UTSX series
UTSX014D12S Applications
There are a lot of Souriau-Sunbank by Eaton
UTSX014D12S Circular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
