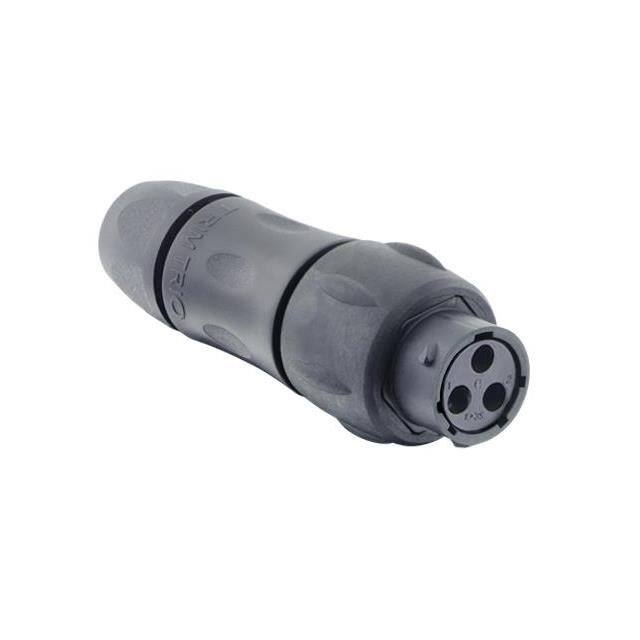

UTSX1JC103S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Housings

Mounting Type :

Free Hanging (In-Line)

Color :

Black

Flammability Rating :

UL 94 V-0

IP Rating :

IP69X

Housing Color :

Black

Series :

Trim Trio? UTSX

Brand :

Souriau

Insert Material :

Polyamide (PA), Nylon

Contact Gender :

Socket (Female)

Contact Type :

Crimp

Mating Cycles :

250 Cycle

Includes :

-

Contact Plating :

Gold

Fastening Type :

Bayonet Lock

Note :

Contacts Not Included

Termination Style :

Crimp

Mounting Angle :

Straight

Orientation :

N (Normal)

Product :

Receptacles

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Type :

For Female Sockets

Subcategory :

Circular Connectors

Connector Type :

Plug Housing

Mounting Style :

In-Line

Shell Size - Insert :

10-3

Manufacturer :

Souriau

Product Status :

Active

Voltage Rating :

500 V

Accessory Type :

-

Shell Material :

Polyamide (PA), Nylon

Product Category :

Standard Circular Connector

Mounting Feature :

-

Wire Gauge :

16 AWG

Shell Style :

Straight

Mating Style :

Bayonet

Package :

Bag

Features :

Backshell, UV Resistant

Current Rating :

10 A

Shielding :

Unshielded

Primary Material :

Plastic

Material Flammability Rating :

UL94 V-0

Number of Positions :

3 (2 + PE)

Product Type :

Standard Circular Connector

Shell Size :

10

Shell Finish :

-

Operating Temperature :

-40°C ~ 105°C

Contact Size :

16

Contact Shape :

Circular

Shell Size, MIL :

-

Contact Material :

Brass
