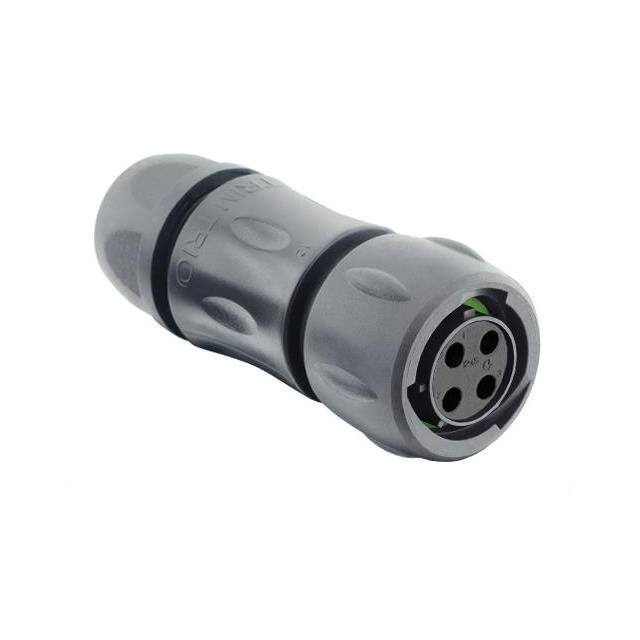

UTSX6JC124S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Housings

Termination Style :

Crimp

Wire Gauge :

14 AWG

Mating Cycles :

250 Cycle

Mounting Style :

CABLE

Flammability Rating :

UL 94 V-0

Mounting Angle :

Straight

Shell Material :

Polyamide (PA), Nylon

Current Rating :

16 A

Contact Shape :

Circular

Package :

Bag

Product Status :

Active

Features :

Backshell, Coupling Nut, UV Resistant

Shell Style :

PLUG

Contact Plating :

Gold

Subcategory :

Circular Connectors

Product Category :

Standard Circular Connector

Shielding :

Unshielded

Product Type :

Standard Circular Connector

Number of Positions :

4 (3 + PE)

Manufacturer :

Souriau

Fastening Type :

Bayonet Lock

Product :

Plugs

Includes :

-

Connector Type :

Plug Housing

Housing Color :

Black

Shell Size :

12

Shell Finish :

-

Mounting Type :

Free Hanging (In-Line)

Contact Gender :

Socket (Female)

Mounting Feature :

-

Contact Material :

Brass

Orientation :

N (Normal)

Contact Type :

Crimp

Shell Size, MIL :

-

Voltage Rating :

500 V

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Type :

For Female Sockets

Material Flammability Rating :

UL94 V-0

Primary Material :

Plastic

Operating Temperature :

-40°C ~ 105°C

IP Rating :

IP69X

Insert Material :

Polyamide (PA), Nylon

Color :

Black

Brand :

Souriau

Shell Size - Insert :

12-4

Mating Style :

Bayonet

Series :

Trim Trio? UTSX

Note :

Contacts Not Included

Accessory Type :

-

Contact Size :

16
