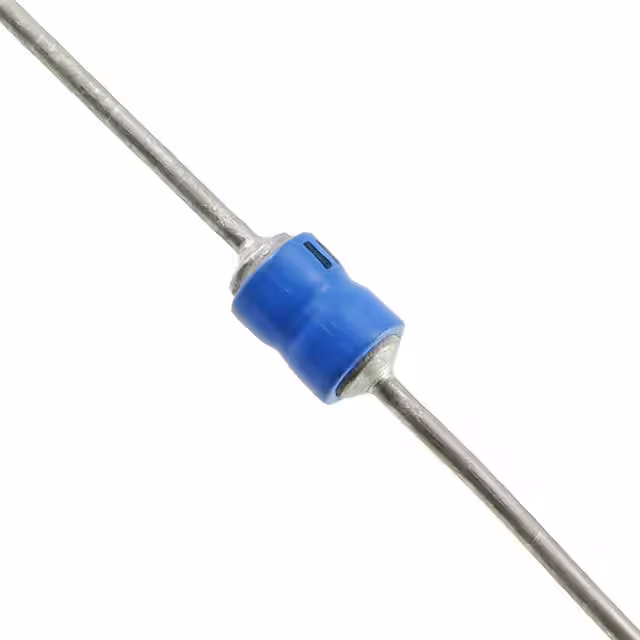

UZ5117

Manufacturer :

Microchip Technology

Product Category :

Diodes - Zener - Single

RoHS :

N

Tolerance :

±5%

Voltage - Zener (Nom) (Vz) :

170 V

Series :

-

Diode Type :

ZENER DIODE

Number of Terminals :

2

Pbfree Code :

No

Number of Elements :

1

HTS Code :

8541.10.00.50

Additional Feature :

METALLURGICALLY BONDED

Package / Case :

B, Axial

Product Category :

Zener Diodes

Power - Max :

5 W

Brand :

Microchip Technology

Supplier Device Package :

B, Axial

Power Dissipation-Max :

5 W

Manufacturer :

Microchip

Product Type :

Zener Diodes

Terminal Form :

Wire

Package :

Bulk

Technology :

Zener

Subcategory :

Diodes and Rectifiers

Mounting Type :

Through Hole

Package Shape :

Round

Reach Compliance Code :

Unknown

Case Connection :

Isolated

ECCN Code :

EAR99

Terminal Finish :

TIN LEAD

Surface Mount :

No

JESD-609 Code :

e0

Product Status :

Active

Working Test Current :

8 mA

Current - Reverse Leakage @ Vr :

5 μA @ 129 V

JESD-30 Code :

O-LALF-W2

Terminal Position :

Axial

Polarity :

Unidirectional

Voltage Tol-Max :

5%

Diode Element Material :

SILICON

Impedance (Max) (Zzt) :

380 Ohms

Qualification Status :

Not Qualified

Configuration :

Single

Operating Temperature :

-65°C ~ 175°C

Peak Reflow Temperature (Cel) :

NOT SPECIFIED
