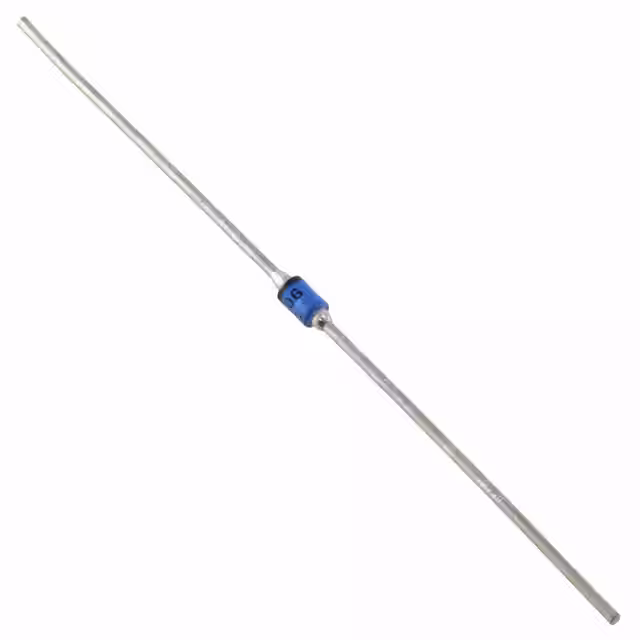

UZ8814

Manufacturer :

Microchip Technology

Product Category :

Diodes - Zener - Single

Mounting Style :

Through Hole

Package / Case :

A, Axial

Minimum Operating Temperature :

- 65 C

Number of Terminals :

2

JESD-609 Code :

e0

Terminal Position :

Axial

Max Operating Temperature :

175 °C

Diameter :

2.16 mm

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

RoHS :

Compliant

Supplier Device Package :

A, Axial

Diode Type :

ZENER DIODE

Number of Pins :

2

Manufacturer :

Microchip

Radiation Hardening :

No

Surface Mount :

No

Reverse Test Voltage :

10.6 V

Termination Style :

Axial

Voltage Tol-Max :

10%

Terminal Finish :

Tin/Lead (Sn/Pb)

Working Test Current :

19 mA

Voltage Tolerance :

10 %

Mounting Type :

Through Hole

Min Operating Temperature :

-65 °C

Max Power Dissipation :

1 W

Package :

Bulk

Power Dissipation-Max :

1 W

Operating Temperature :

-65°C ~ 175°C

Technology :

Zener

Product Category :

Zener Diodes

Impedance (Max) (Zzt) :

12 Ohms

Voltage Temp Coeff-Max :

9.8 mV/°C

Zener Current :

0.5 uA

Voltage - Zener (Nom) (Vz) :

14 V

Reach Compliance Code :

Unknown

Reverse Current-Max :

0.5 µA

Current - Reverse Leakage @ Vr :

500 nA @ 10.1 V

JESD-30 Code :

O-XALF-W2

Series :

-

Polarity :

Unidirectional

Dynamic Impedance-Max :

12 Ω

Subcategory :

Diodes and Rectifiers

Case Connection :

Isolated

Terminal Form :

Wire

Length :

3.9 mm

Maximum Operating Temperature :

+ 175 C

Max Reverse Leakage Current :

500 nA

Test Current :

19 mA

Brand :

Microchip Technology

Element Configuration :

Single

Configuration :

Single

Zener Voltage :

14 V

Tolerance :

±10%

Power - Max :

1 W

Number of Elements :

1

Product Type :

Zener Diodes

Package Shape :

Round

Diode Element Material :

SILICON

Product Status :

Active

Packaging :

Bulk

Mount :

Through Hole
