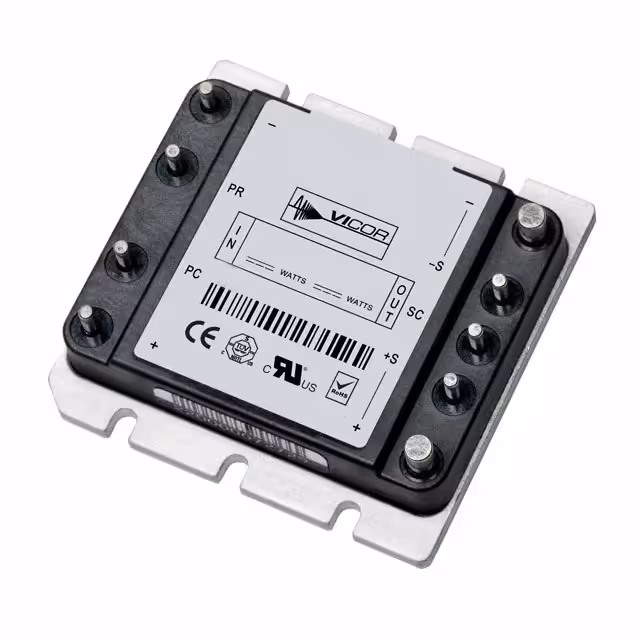

V110B36T150B

Manufacturer :

Vicor

Product Category :

Output Voltage :

36V

Voltage - Output 1 :

36V

Voltage - Input (Max) :

154V

Package / Case :

9-DIP Module

Terminal Position :

Dual

Power (Watts) :

150W

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Number of Terminations :

9

Qualification Status :

Not Qualified

Additional Feature :

REMOTE SHUTDOWN

Efficiency :

87%

ECCN Code :

EAR99

Height :

15.748mm

Type :

Isolated Module

Width :

55.88mm

Terminal Form :

PIN/PEG

RoHS Status :

ROHS3 Compliant

Reach Compliance Code :

not_compliant

Max Output Current :

4.17A

JESD-30 Code :

R-XDFM-P9

Series :

MINI (150W)

Mount :

Through Hole

Number of Functions :

1

Max Power Dissipation :

150W

Pbfree Code :

No

Terminal Finish :

Gold (Au)

Moisture Sensitivity Level (MSL) :

Not Applicable

Base Part Number :

V110B36T150

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Trim/Adjustable Output :

yes

Input Voltage-Nom :

110V

Mounting Type :

Through Hole

Voltage - Isolation :

3kV

Pin Count :

9

Feature :

OVP, UVLO

Approval Agency :

UL, CSA, TUV

Number of Outputs :

1

JESD-609 Code :

e4

Applications :

ITE (Commercial)

Voltage - Input (Min) :

66V

Operating Temperature :

-40°C~100°C

Size / Dimension :

2.28Lx2.20W x 0.50 H 57.9mmx55.9mmx12.7mm

Packaging :

Bulk
