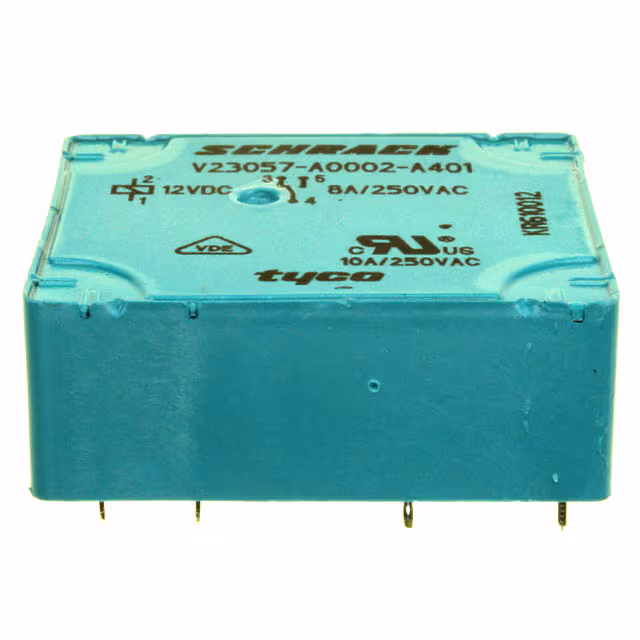

V23057A 2A401

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Power Relays, Over 2 Amps

Switching Voltage :

400VAC - Max

Operating Temperature :

-40°C ~ 70°C

Mounting Type :

Through Hole

Coil Operate Voltage(DC) :

8 V

Contact Current(DC)-Max :

8 A

Packing Method :

Tray

Contact Form :

SPDT (1 Form C)

Coil Power :

440 mW

Factory Lead Time :

14 Weeks, 1 Day

Coil Current :

36.3mA

ECCN Code :

EAR99

Coil Insulation :

-

Features :

--

Body Length or Diameter :

28 mm

Package :

Tube

Base Product Number :

V23057

Coil Current(DC)-Max :

0.037 A

Turn Off Voltage (Min) :

1.2 VDC

Termination Type :

Solder

Release Time :

3ms

Coil Voltage :

12VDC

Body Breadth :

25 mm

Must Operate Voltage :

8 VDC

Coil Resistance :

330 Ω

Coil/Input Supply Type :

DC

Coil Type :

Non Latching

Coil Release Voltage(DC) :

1.2 V

Relay Action :

Momentary

Body Height :

10.8 mm

Contact/Output Supply Type :

AC/DC

Relay Function :

SPDT

Packaging :

Tube

Contact Current(AC)-Max :

8 A

Termination Style :

PC Pin

Series :

V23057, SCHRACK

Surface Mount :

No

Contact Rating (Current) :

8A

Physical Dimension :

28mm x 25mm x 10.8mm

Contact Material :

Silver Cadmium Oxide (AgCdO)

Relay Type :

POWER/SIGNAL RELAY

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Reach Compliance Code :

Unknown

Turn On Voltage (Max) :

8 VDC

Reference Standard :

UL; VDE

Seal Rating :

-

Product Status :

Active

Coil Voltage(DC)-Max :

12 V

Operate Time :

7ms

Must Release Voltage :

1.2 VDC
