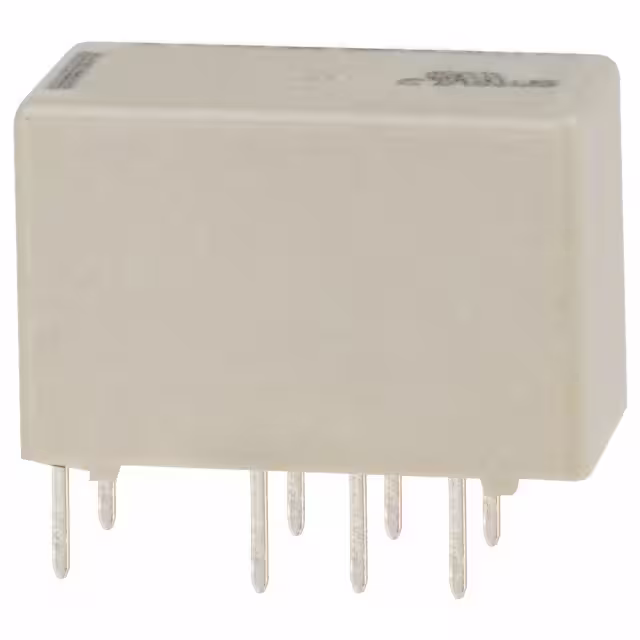

V23079A2002B301

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Signal Relays, Up to 2 Amps

Reach Compliance Code :

Compliant

Series :

V23079, AXICOM

Product Length (mm) :

7(mm)

Contact/Output Supply Type :

AC/DC

Coil Power :

140 mW

Coil Operate Voltage(DC) :

4.5 V

Contact Voltage(DC)-Max :

220 V

Package :

Tube

Coil Insulation :

-

Relay Type :

GENERAL PURPOSE

Screening Level :

COMMERCIAL

Product Status :

Discontinued at Digi-Key

Switching Time :

17 ms

Operating Frequency-Min :

100 MHz

Must Release Voltage :

0.6 Vdc

Pin Count :

4

Electrical Life :

200000 Cycle(s)

Relay Action :

Momentary

Contact Current(DC)-Max :

2 A

Manufacturer :

TE Connectivity

Contact Voltage(AC)-Max :

250 V

Product Height (mm) :

0.9(mm)

Turn Off Voltage (Min) :

0.6 Vdc

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Operating Temp Range :

-20C to 70C

Additional Feature :

RELEASE TIME WITH DIODE IN PARALLEL

Contact Rating (Current) :

2A

Operate Time :

4ms

ECCN Code :

EAR99

HTS Code :

8536.49.00.50

Coil Voltage :

6VDC

Release Time :

4ms

Features :

--

Product Depth (mm) :

5(mm)

Contact Material :

Silver Nickel (AgNi), Gold (Au)

Seal Rating :

-

Packaging :

Bulk

VSWR :

1.4

Base Product Number :

V23079

Physical Dimension :

15mm x 7.5mm x 9.5mm

Termination Type :

Solder

Coil/Input Supply Type :

DC

Package / Case :

QFN

Must Operate Voltage :

4.5 VDC

Sealing :

IP67

Relay Function :

DPDT

Operating Temperature :

-40°C ~ 85°C

Coil Current(DC)-Max :

0.023 A

Mounting Style :

Surface Mount

Switching Voltage :

250VAC, 220VDC - Max

Termination Style :

PC Pin

Coil Type :

Non Latching

Contact Current(AC)-Max :

2 A

Coil Release Voltage(DC) :

0.45 V

Turn On Voltage (Max) :

4.5 VDC

Body Breadth :

7.5 mm

Coil Resistance :

257 Ohms

Reference Standard :

CSA; UL

Coil Voltage(DC)-Max :

6 V

Packing Method :

BOX; TUBE

Coil Current :

23.3mA

Surface Mount :

No

Operating Frequency-Max :

900 MHz

Mounting Type :

Through Hole

Body Length or Diameter :

15 mm

Body Height :

9.5 mm

Contact Form :

DPDT (2 Form C)
