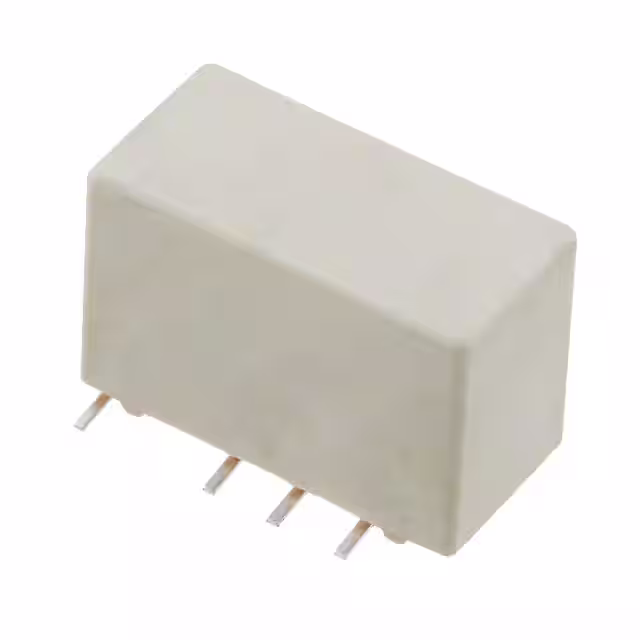

V23079D2011B301

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Signal Relays, Up to 2 Amps

Must Release Voltage :

0.45 VDC

Operate Time :

8 ms

Contact Current(AC)-Max :

2 A

Product Type :

PCB Relays

Contact Current(DC)-Max :

2 A

Isolation :

20.7 dB

Switching Voltage :

250VAC, 220VDC - Max

Contact Termination :

Solder Pin

Termination Type :

Solder

Features :

-

Contact Resistance :

50 mΩ

Relay Function :

DPDT

Coil Current :

31.1 mA

Switching Time :

17 ms

Seal Rating :

-

Coil Type :

Non-Latching

Series :

V23079/P2 Relay

Coil Voltage :

4.5 VDC

HTS Code :

8536.49.00.50

Product :

Low Profile Relays

Insulation Resistance :

1000000000 Ω

Additional Feature :

RELEASE TIME WITH DIODE IN PARALLEL

Mounting Feature :

SURFACE MOUNT-STRAIGHT

Contact Material :

Silver Nickel (AgNi) with Gold Plating

Packaging :

Tape and Reel

Type :

Miniature

Physical Dimension :

15mm x 7.5mm x 9.9mm

Contact Voltage(AC)-Max :

250 V

Relay Type :

RF RELAY

Terminal Finish :

NOT SPECIFIED

Contact Current Rating :

2 A

Product Category :

Low Signal Relays - PCB

Product Status :

Active

Pbfree Code :

yes

Relay Form :

2 Form C

Coil Release Voltage(DC) :

0.45 V

Reach Compliance Code :

Compliant

Body Length or Diameter :

15 mm

PCB Hole Count :

10

Insertion Loss :

0.27 dB

Operating Frequency-Min :

100 MHz

Coil Insulation :

-

Contact Rating (Current) :

2 A

Sealing :

IP67

Must Operate Voltage :

3.38 VDC

Operating Temperature :

-40°C ~ 85°C

Input Switching Control Type :

Random

Termination Style :

Gull wing

Coil Resistance :

145 Ω

Body Breadth :

7.5 mm

Coil Current(DC)-Max :

0.031 A

Electrical Life :

200000 Cycle(s)

End Contact Plating :

Gold

Base Product Number :

V23079

Dielectric Strength Between Open Contacts :

1000 Vrms

Contact Voltage(DC)-Max :

220 V

Coil Power :

140 mW

Subcategory :

Relays

Contact Form :

DPDT (2 Form C)

Body Height :

9.9 mm

Number of Terminals :

10

Mounting Style :

Through Hole

Reference Standard :

CSA; UL

Surface Mount :

No

Packing Method :

Tape and Reel

VSWR :

1.4

Mounting Type :

Surface Mount

Release Time :

9 ms

Weight :

2.8 g

End Contact Material :

Silver Nickel

ECCN Code :

EAR99

Dielectric Strength Between Coil and Contacts :

1500 Vrms

Coil Voltage(DC)-Max :

4.5 V

Contact/Output Supply Type :

AC/DC

Relay Action :

Momentary

Operating Frequency-Max :

900 MHz

RoHS :

Details

Power Consumption :

140 mW

Coil/Input Supply Type :

DC

Package :

Tape and Reel (TR);Cut Tape (CT);

Factory Lead Time :

16 Weeks

Coil Operate Voltage(DC) :

3.375 V

Brand :

TE Connectivity / Axicom
