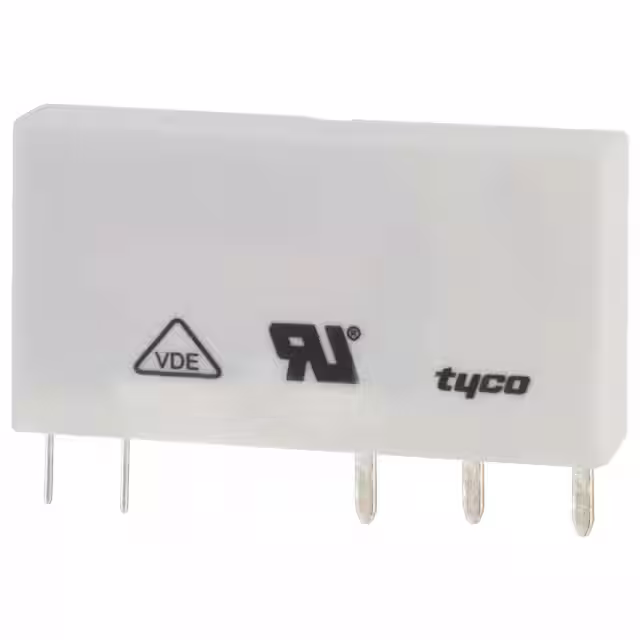

V23092A1012A202
Or copy the link below:
- Mfr.Part #
- V23092A1012A202
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPST 6A 12V
- Stock
- 31,352
- In Stock ：
- 31,352
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Turn Off Voltage (Min) :
- 0.6 Vdc
- Coil Termination :
- Solder Pin
- Contact Current Rating :
- 6 A
- Relay Action :
- Momentary
- Mounting Style :
- Through Hole
- Sealing :
- RT3
- Operate Time :
- 6.5 ms
- Body Breadth :
- 5 mm
- Series :
- SNR, SCHRACK
- ECCN Code :
- EAR99
- Relay Function :
- SPST
- Product Length :
- 28 mm
- Switching Voltage :
- 400VAC - Max
- Factory Lead Time :
- 15 Weeks, 1 Day
- Coil/Input Supply Type :
- DC
- Product Status :
- Active
- Coil Release Voltage(DC) :
- 0.6 V
- Coil Power :
- 170 mW
- Coil Resistance :
- 848 Ω
- Width :
- 5 mm
- Body Height :
- 15 mm
- Package :
- Tube
- Coil Voltage :
- 12VDC
- Termination Type :
- Solder
- Contact Material :
- Silver Tin Oxide
- Relay Type :
- POWER/SIGNAL RELAY
- Coil Operate Voltage(DC) :
- 8.4 V
- Length :
- 28 mm
- Reach Compliance Code :
- Compliant
- Must Operate Voltage :
- 8.4 VDC
- Packaging :
- Tube
- Termination Style :
- PC Pin
- HTS Code :
- 8536.49.00.50
- Surface Mount :
- No
- Reference Standard :
- UL; VDE
- Contact Current(DC)-Max :
- 6 A
- Mounting Feature :
- THROUGH HOLE-STRAIGHT MOUNT
- Turn On Voltage (Max) :
- 8.4 VDC
- Mounting :
- Through Hole
- Contact Rating (Current) :
- 6A
- Seal Rating :
- Sealed - Fully
- Coil Current(DC)-Max :
- 0.014 A
- Contact Voltage(DC)-Max :
- 300 V
- Minimum Dropout Voltage :
- 0.6 Vdc
- Features :
- Sealed - Fully
- Coil Insulation :
- -
- Base Product Number :
- V23092
- Height :
- 15 mm
- Relay Construction :
- Non-Latching
- Contact Form :
- SPST-NO (1 Form A)
- Release Time :
- 4 ms
- Operating Temperature :
- -40 to 85 °C
- Contact Arrangement :
- SPST-NO
- Contact Voltage(AC)-Max :
- 400 V
- Body Length or Diameter :
- 28 mm
- Contact Current(AC)-Max :
- 6 A
- Contact Termination :
- Solder Pin
- Mounting Type :
- Through Hole
- Power Consumption :
- 170 mW
- Coil Voltage(DC)-Max :
- 12 V
- Must Release Voltage :
- 0.6 Vdc
- Coil Current :
- 14.2mA
- Supplier Package :
- SIP
- Contact/Output Supply Type :
- AC/DC
- Product :
- Slim Form Relays
- Coil Type :
- Non Latching
- Physical Dimension :
- 28mm X 5mm X 15mm
- Datasheets
- V23092A1012A202
V23092A1012A202 datasheet pdf and Integrated Circuits (ICs) product details from TE Connectivity stock available at
