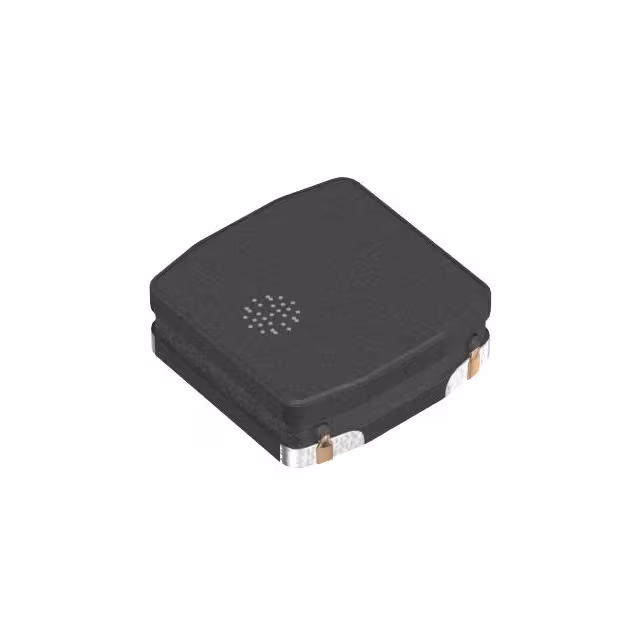

VLS3010CX-470M-1

Manufacturer :

TDK Corporation

Product Category :

Fixed Inductors

Current - Saturation (Isat) :

230mA

DC Resistance (DCR) :

1.392Ohm Max

Type :

Drum Core, Wirewound

Application :

COMMERCIAL

Subcategory :

Inductors, Chokes and Coils

Product Length :

3mm

Operating Temperature :

-40°C ~ 105°C

RMS Current (Irms) :

550mA

Packaging :

Cut Tape

Current Rating (Amps) :

500 mA

Series :

VLS-CX-1

Inductance Frequency - Test :

1 MHz

Product Width :

3mm

Mounting Style :

PCB Mount

Size / Dimension :

0.118" L x 0.118" W (3.00mm x 3.00mm)

Mounting Type :

Surface Mount

RoHS :

Details

Product :

Power Inductors

Saturation Current :

250 mA

Width :

3 mm

Product Type :

Fixed Inductors

Material - Core :

Ferrite

Maximum Operating Temperature :

+ 105 C

Q @ Freq :

-

Product Height :

1mm

Product Status :

Active

Shielding :

Shielded

Frequency - Self Resonant :

-

Minimum Operating Temperature :

- 40 C

Termination Style :

SMD/SMT

Brand :

TDK

Inductance Tolerance :

± 20%

Diameter :

-

Termination :

Standard

Manufacturer :

TDK

Height :

1 mm

Inductance :

47 µH

Test Frequency :

1 MHz

Package / Case :

Nonstandard

Length :

3 mm

Ratings :

-

Core Material :

Ferrite

Product Category :

Power Inductors - SMD

Tolerance :

±20%

Supplier Device Package :

-

Features :

-

Package :

Digi-Reel?

Height - Seated (Max) :

0.039" (1.00mm)

Self Resonant Frequency :

-
