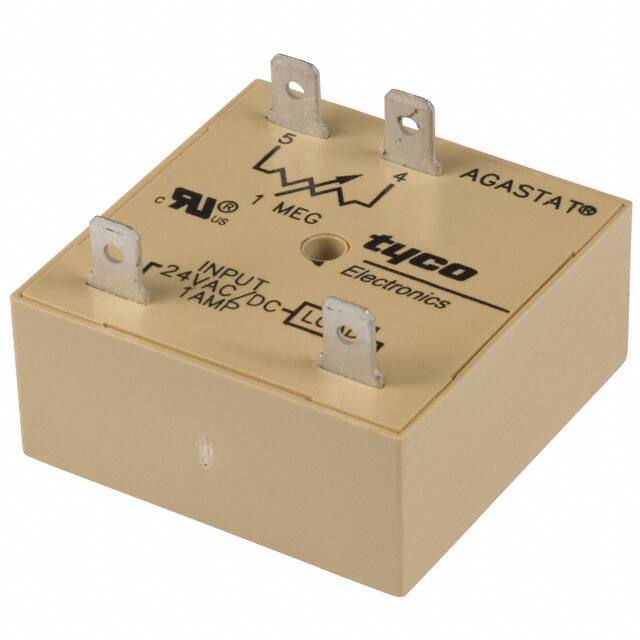

VTM1EDD

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

Time Delay Relays

Brand Name :

Agastat

Body Length or Diameter :

50.8 mm

Contact Current(AC)-Max :

1 A

Body Height :

22.48 mm

Package :

Bulk

Operating Temperature :

-40 to 65 °C

Voltage - Supply :

24VAC/DC

Physical Dimension :

50.8mm x 50.8mm x 22.48mm

Base Product Number :

VTM1E

Reference Standard :

CSA; UL

Adjustable Time Delay-Min :

3 s

Relay Type :

Solid State Relay

Product Status :

Active

Relay Function :

SPST

Delay Time :

3 Sec ~ 60 Sec

Contact Rating @ Voltage :

1A @ 120VAC

Pbfree Code :

No

Body Breadth :

50.8 mm

Mounting Feature :

Panel Mount

Circuit :

SPST-NO (1 Form A)

Contact Current(DC)-Max :

1 A

Contact Arrangement :

SPST-NO

Series :

VTM1, AGASTAT

Coil Voltage(DC)-Max :

24 V

Mounting Type :

Chassis Mount

Reach Compliance Code :

Compliant

Manufacturer :

TE Connectivity

Surface Mount :

No

Type :

Time Delay Relay

Relay Construction :

Time Delay

Timing Adjustment Method :

External Resistor

Factory Lead Time :

4 Weeks

Mounting :

Panel Mount

Termination Type :

Quick Connect

Contact/Output Supply Type :

AC/DC

Timing Initiate Method :

Input Voltage

Product Length :

50.8 mm

Coil Voltage(AC)-Max :

24 V

Relay Action :

Momentary

Adjustable Time Delay-Max :

60 s

ECCN Code :

EAR99

Termination Style :

Quick Connect - 0.250 (6.3mm)

Function :

On-Delay
